Reliably Detectable Marks

PreviousVirt Manager - Network Access & Troubleshooting

Last updated 1 year ago

This section maps to Requirement 1.2-B

Marks are determined valid and counted by the system if the amount of darker pixels in the bubble area exceeds a configurable threshold. This threshold can be adjusted to have a stricter or looser interpretation of what is considered a valid mark. The recommended and default threshold in the system is 7%, under which marks such as a light dot, a fold through a bubble, a stray mark outside of the bubble, or a small line just on the corner of a bubble will be considered invalid. Marks such as a completely filled bubble, half filled bubble, or an X in a bubble will be considered valid. Examples of invalid and valid marks along with the score for that mark (in green) are shown below.

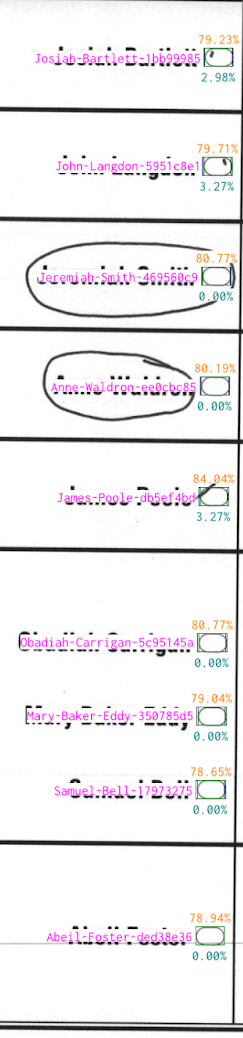

Invalid Marks

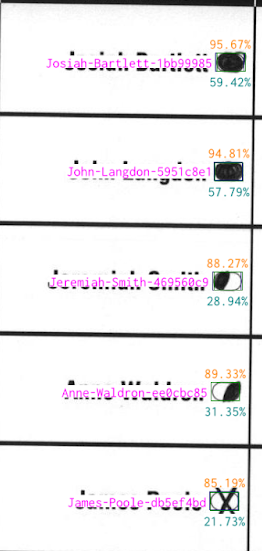

Valid Marks
