  1. VxScan

Printer Management

PreviousConfigure VxScanNextScanner Management

Last updated 3 months ago

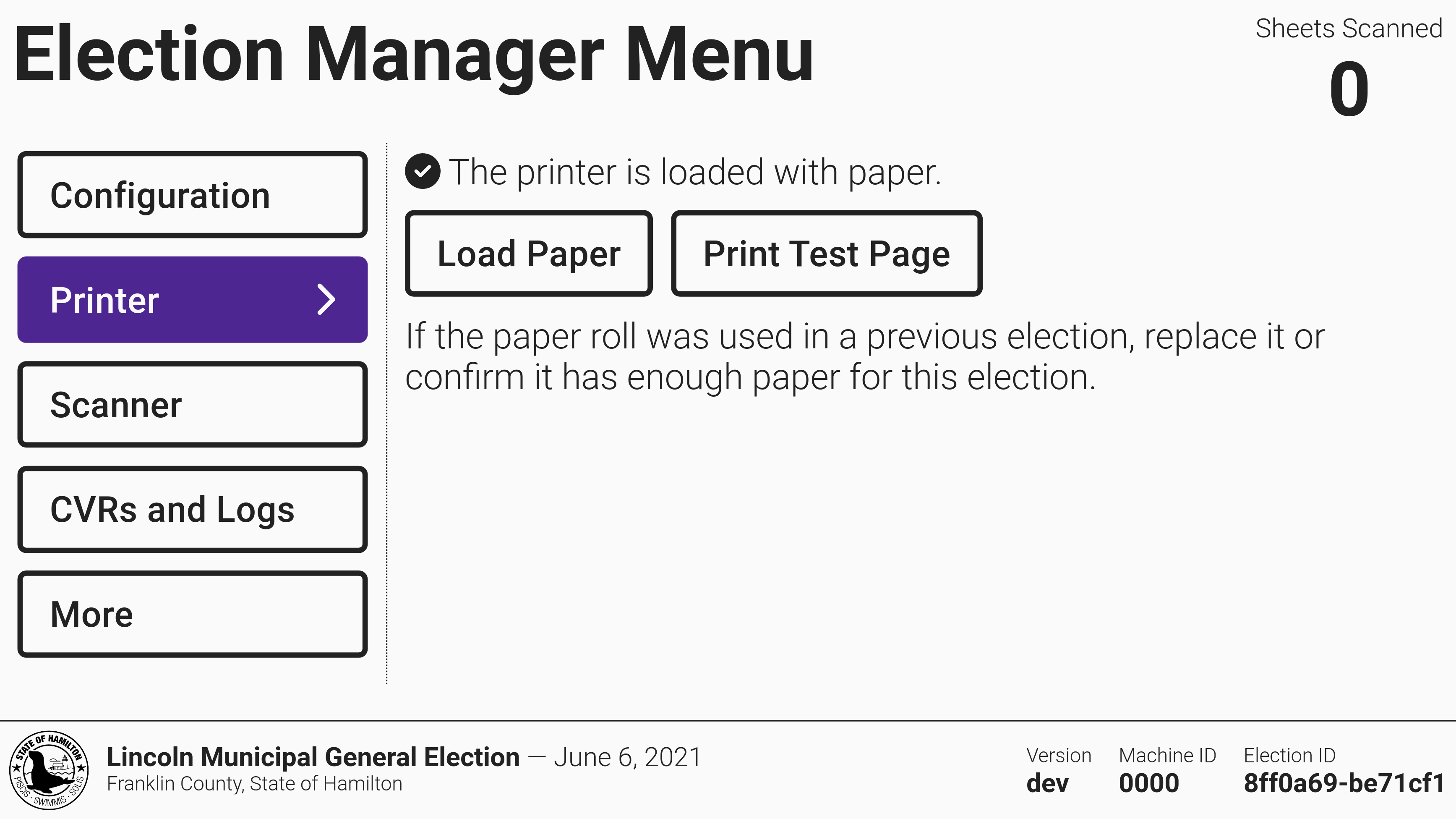

To replace a paper roll or print a test page, navigate to the Printer tab in the election manager menu and select Load Paper or Print Test Page.

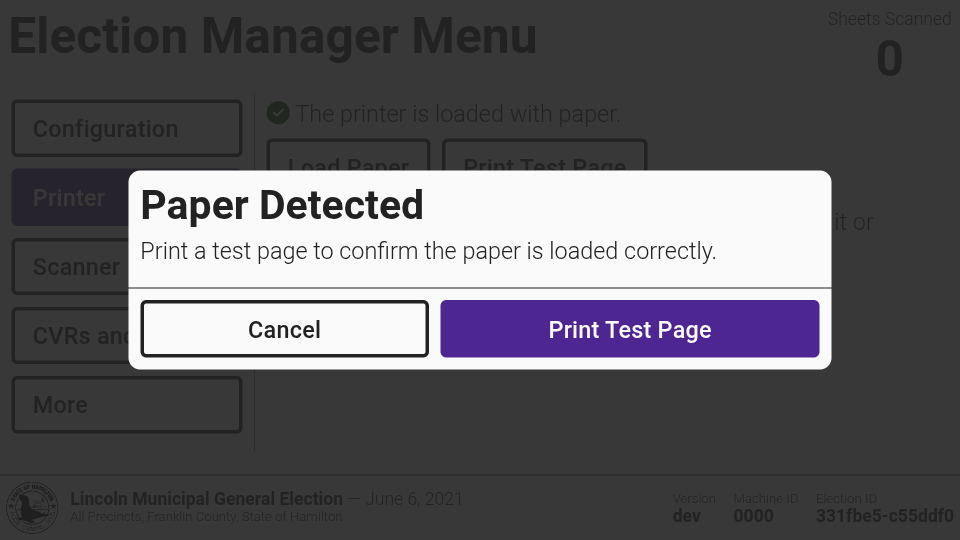

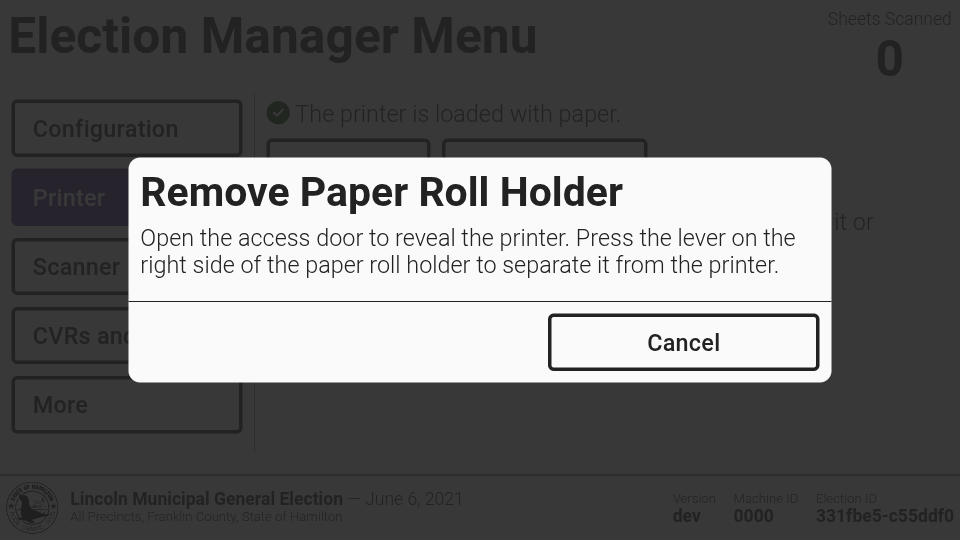

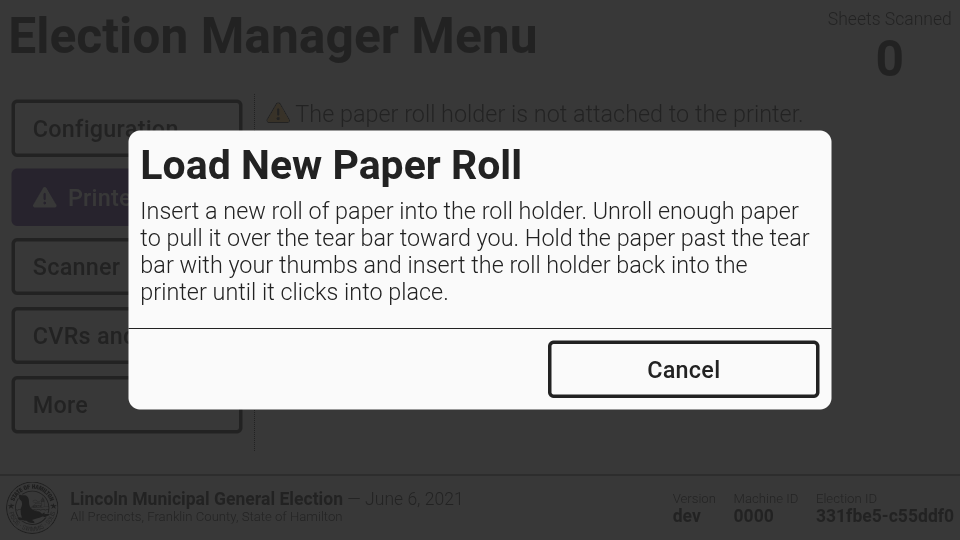

If loading a new paper roll, the screen will walk you through removing the paper roll holder and loading a new paper roll. Select Print Test Page to print a test page and confirm the paper was loaded properly.

The paper roll can be replaced at any point of time, with the machine turned on or off. Using the election manager printer flow is not required but can be helpful for someone who needs step-by-step instructions or wants to print a test page.

To replace or add a printer paper roll:

The paper roll must be installed in the correct orientation or it will not print. The correct orientation is indicated on the side of the paper roll holder.

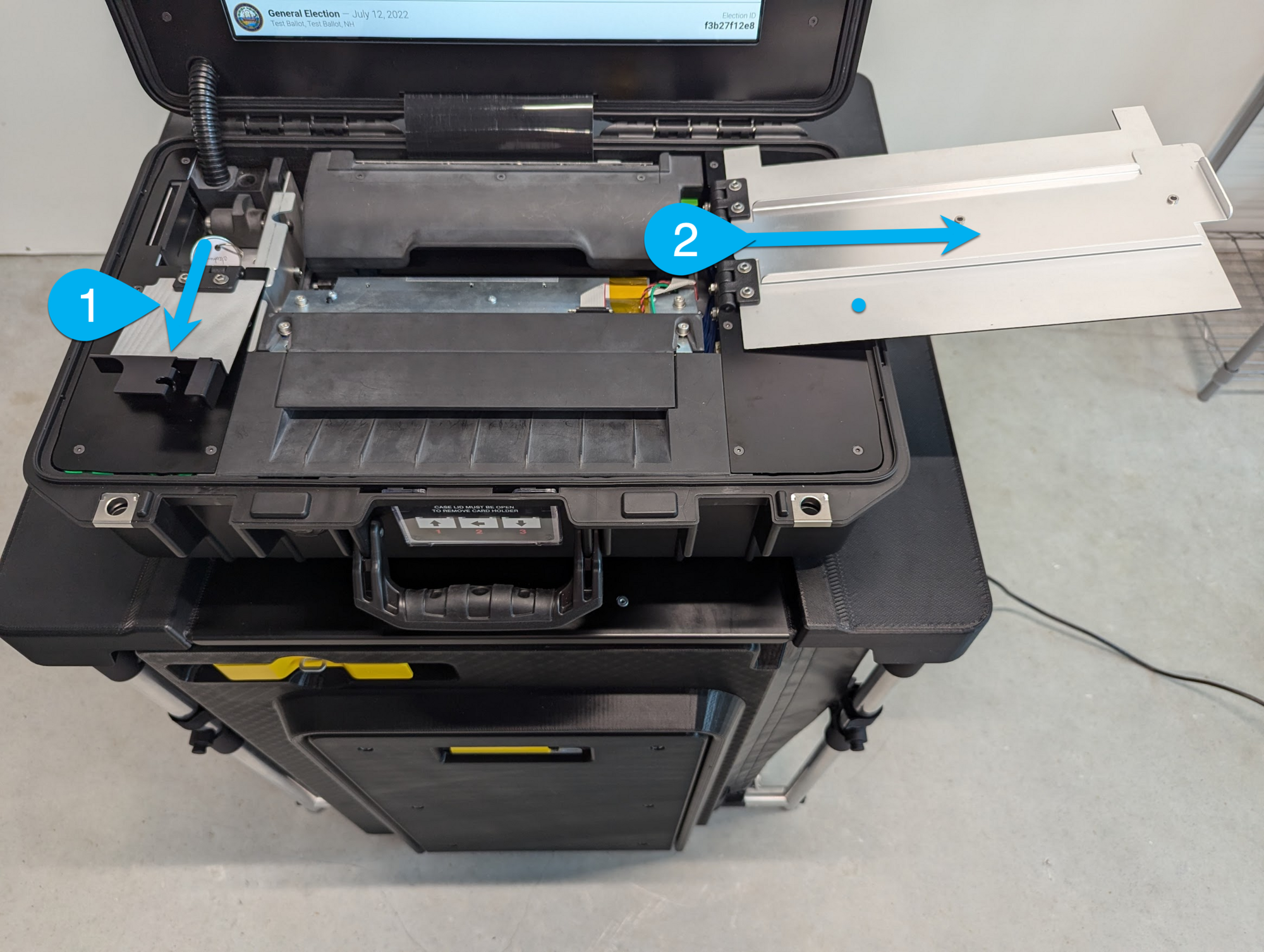

open panels

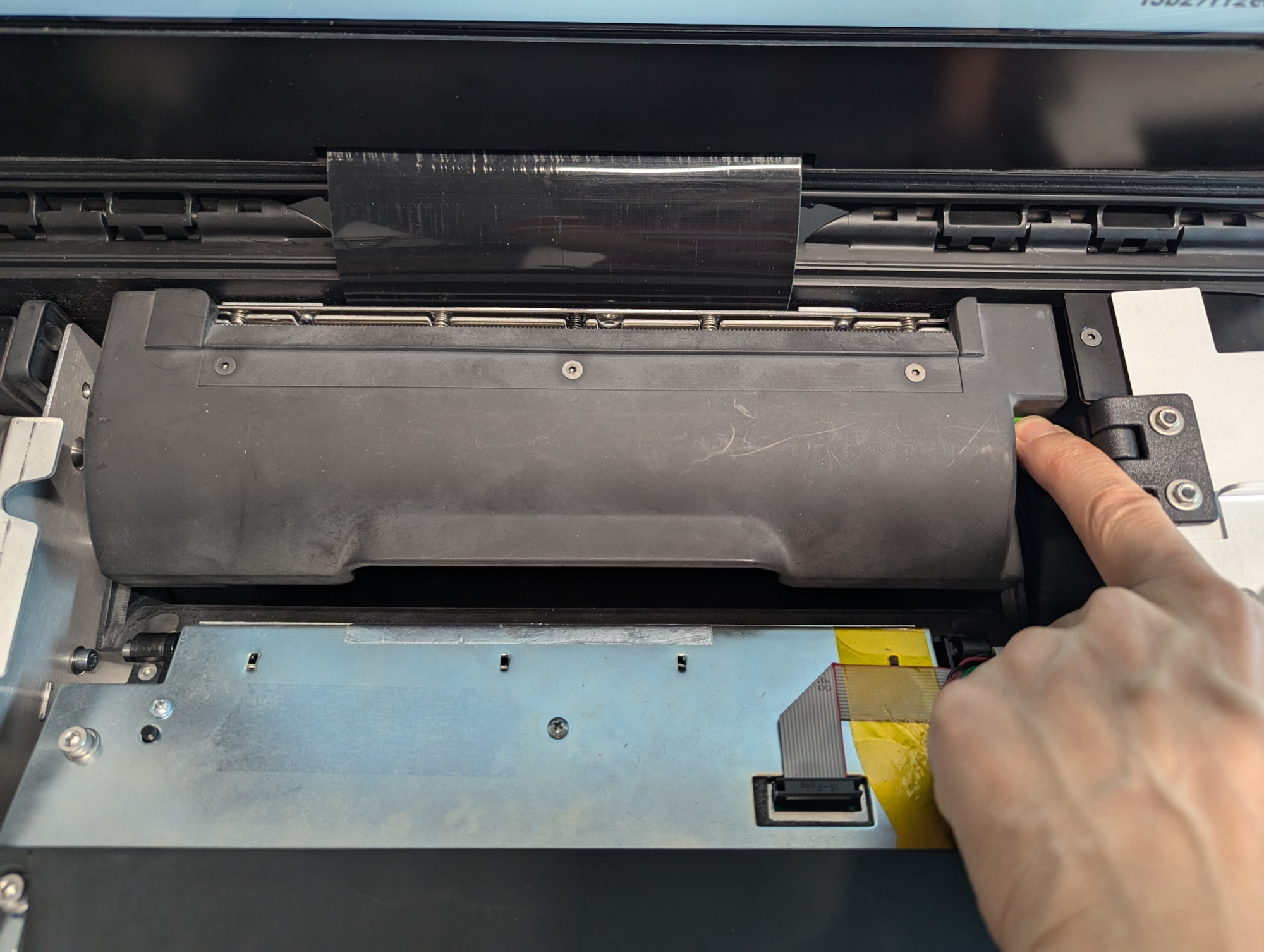

push the green button

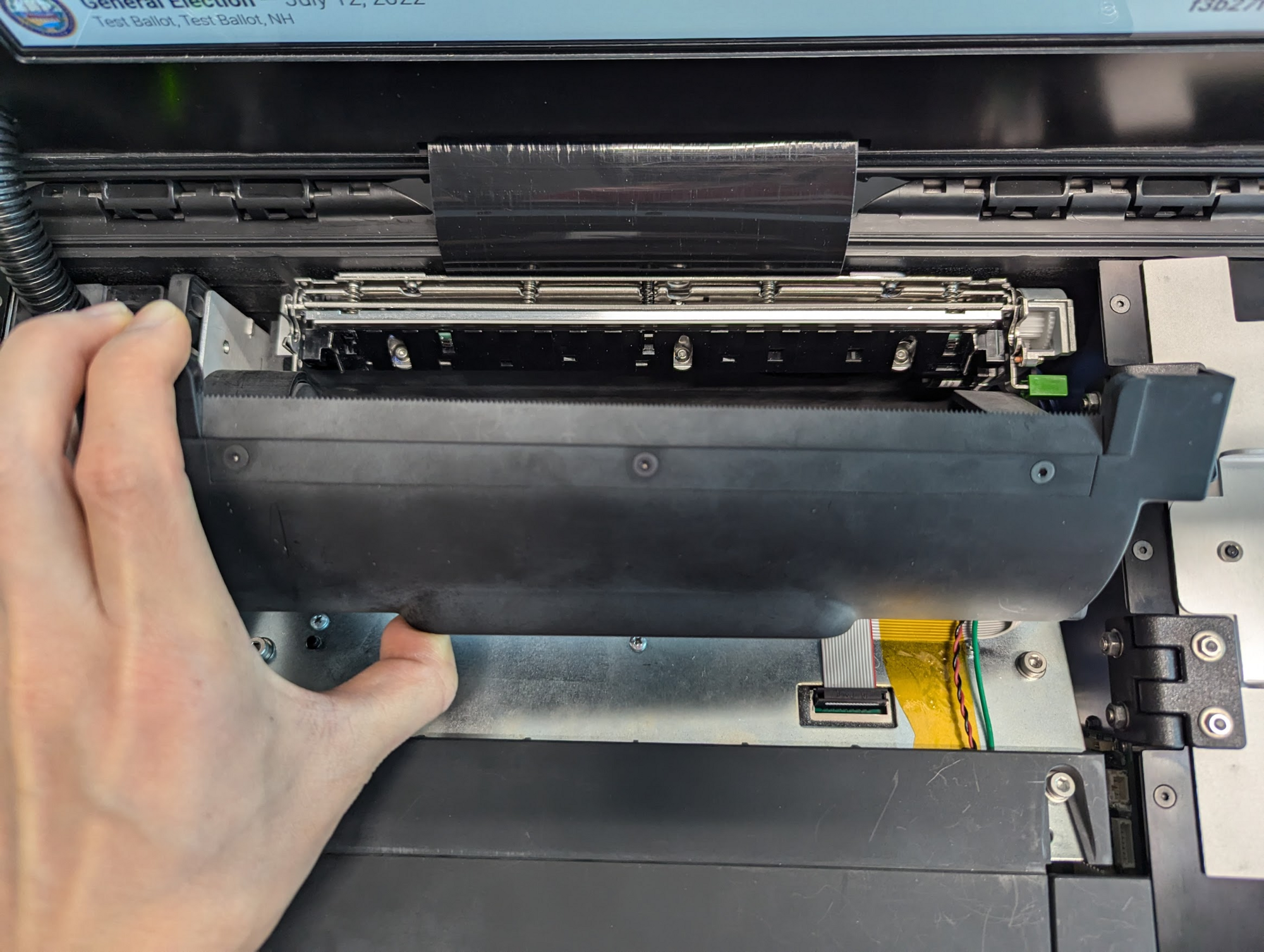

remove the paper roll case

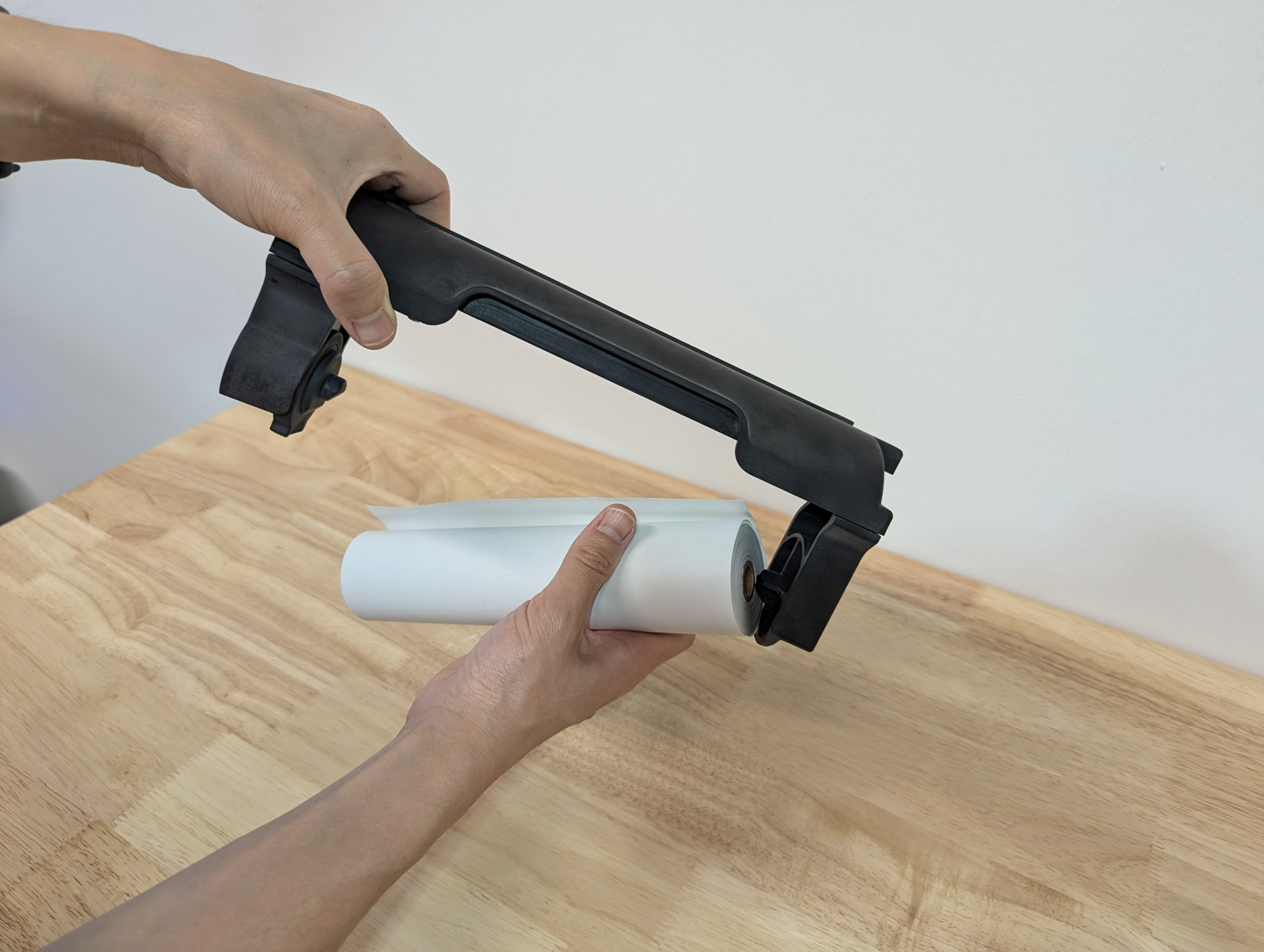

place one end on the case

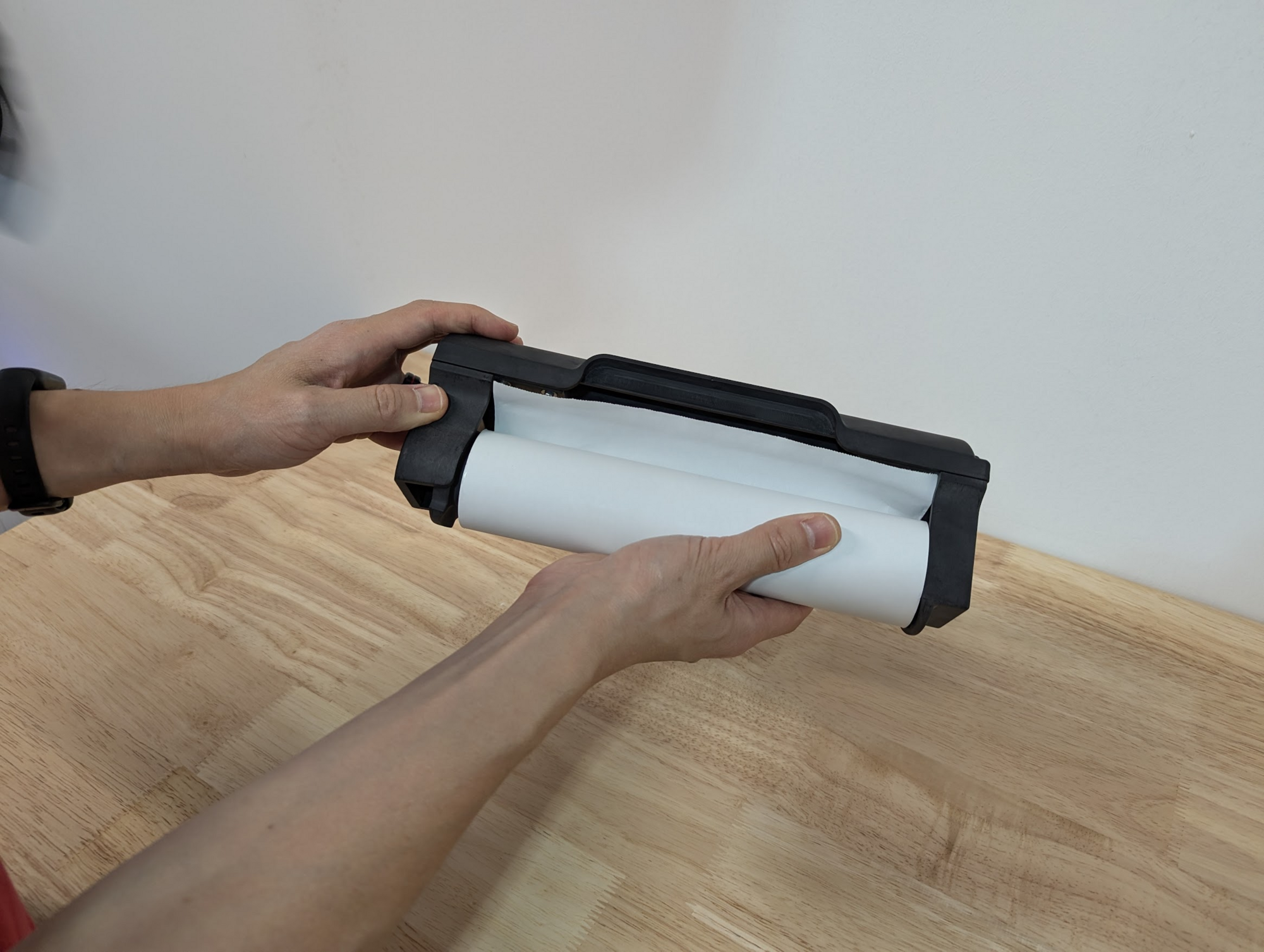

place the other end on the case

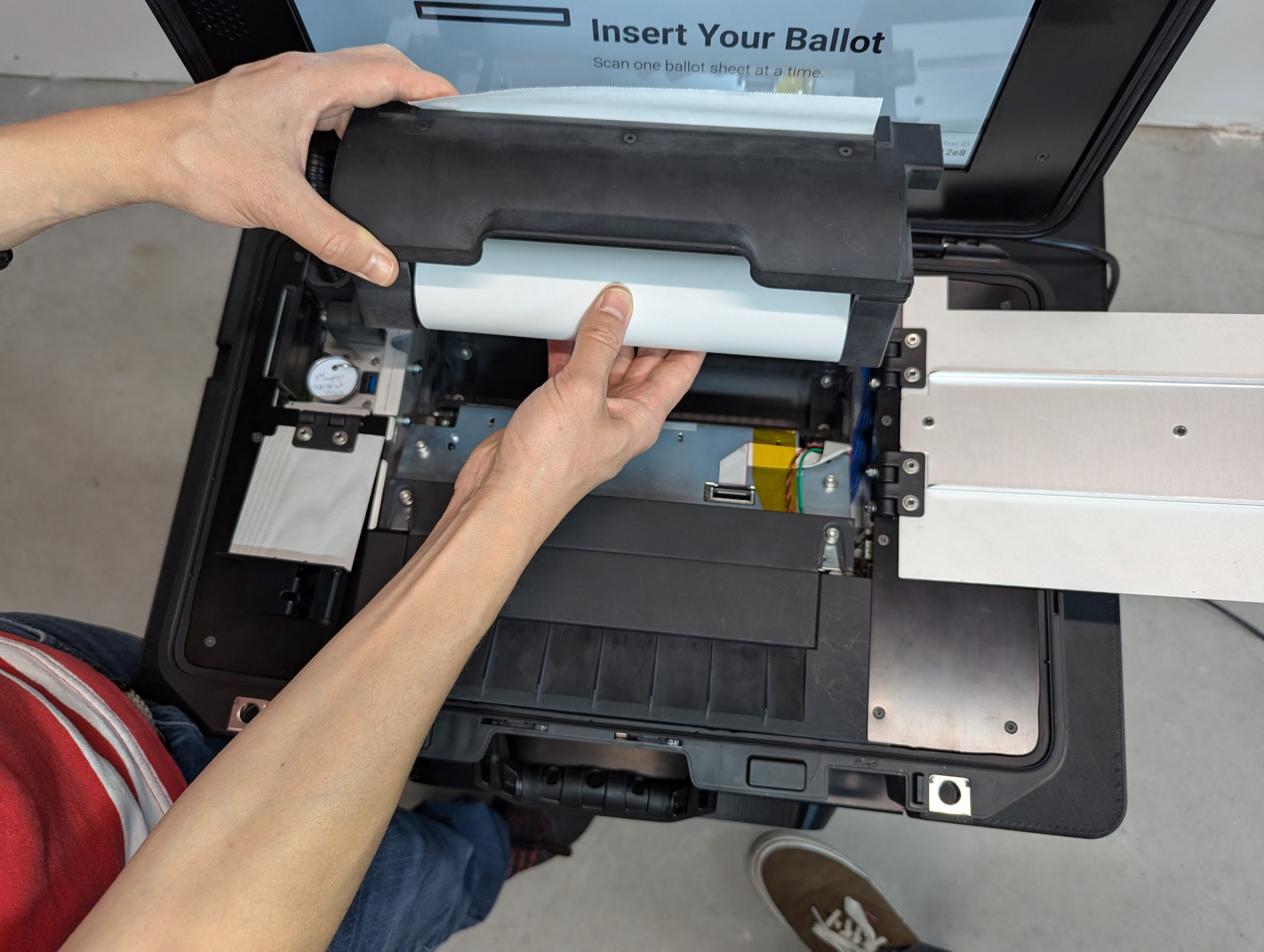

pull paper through the feed

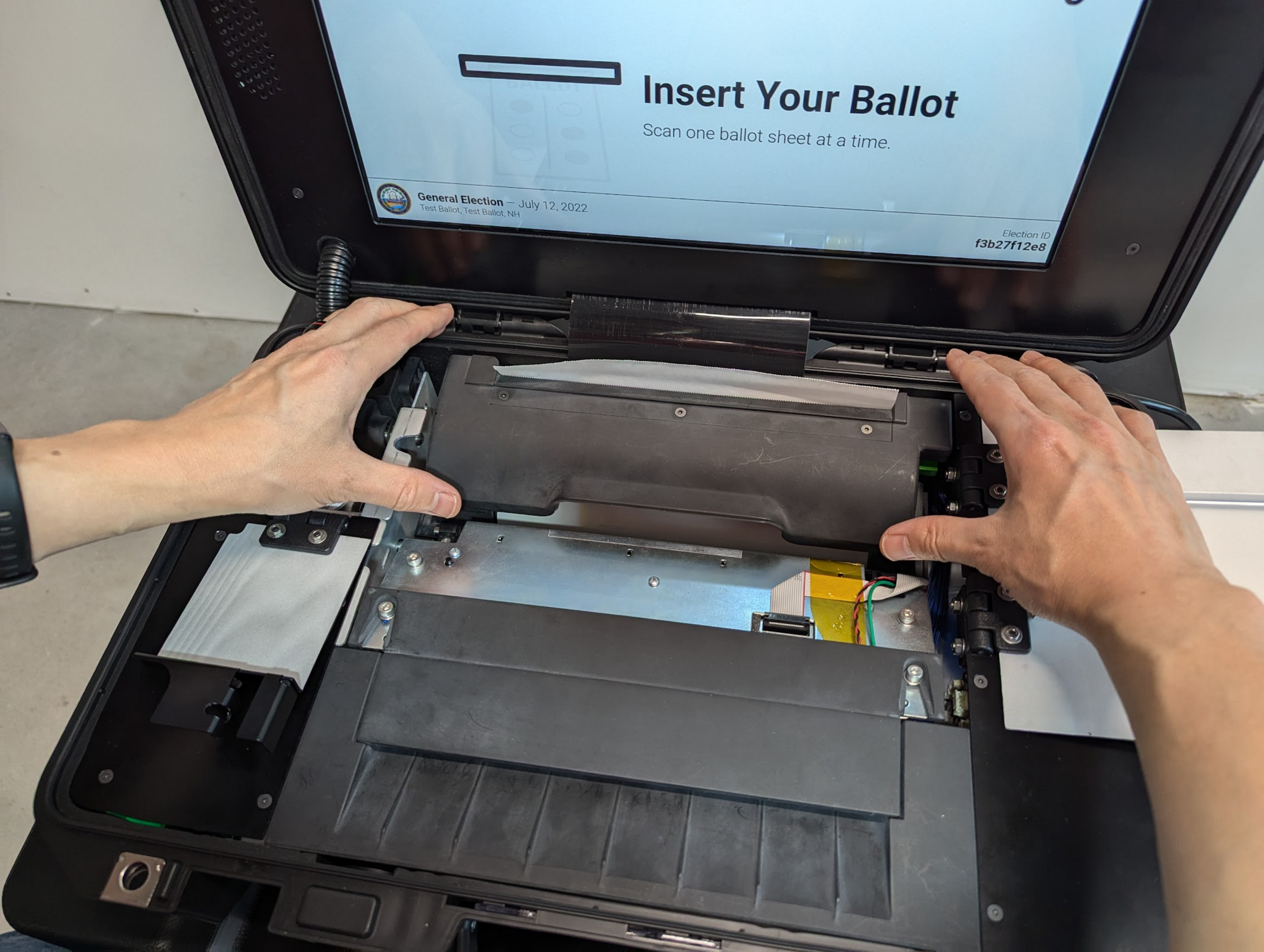

snap case back in to VxScan

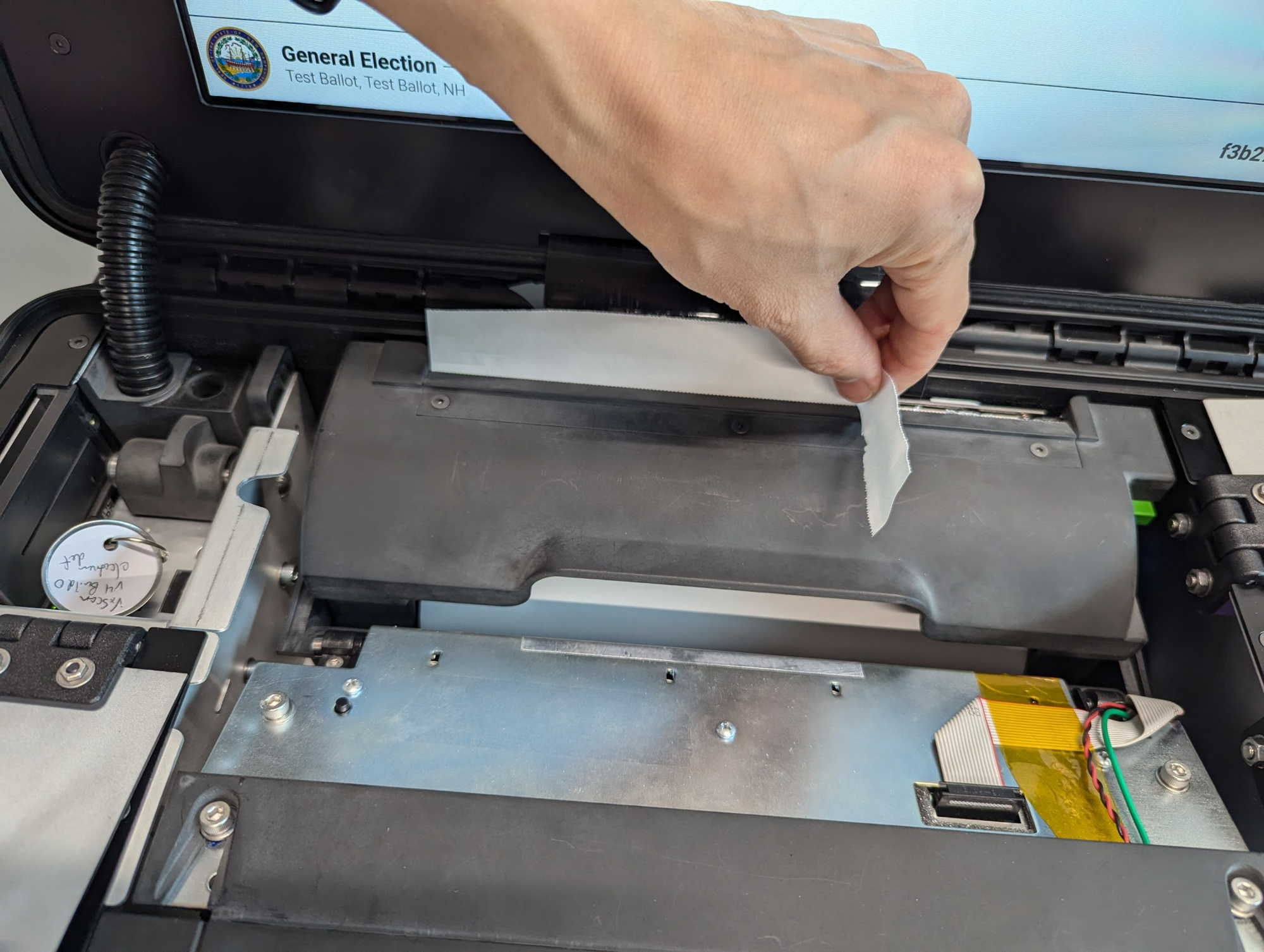

remove excess paper
