# Configure VxMarkScan

{% hint style="info" %}
The following steps must be completed by an election manager.
{% endhint %}

Before you configure VxMarkScan, you must set up the machine. Follow [VxMarkScan Hardware Setup](https://docs.voting.works/vxsuite-user-manual-v4/vxmarkscan/vxmarkscan-hardware-setup) steps.

To configure **VxMarkScan**, you must do two things in **VxAdmin**:

1. [Save the election package](https://docs.voting.works/vxsuite-user-manual-v4/vxadmin-system-setup/save-election-package) to a USB drive.
2. [Create an election manager card](https://docs.voting.works/vxsuite-user-manual-v4/vxadmin-system-setup/programming-cards).

## Inserting Smart Cards & USB Drives

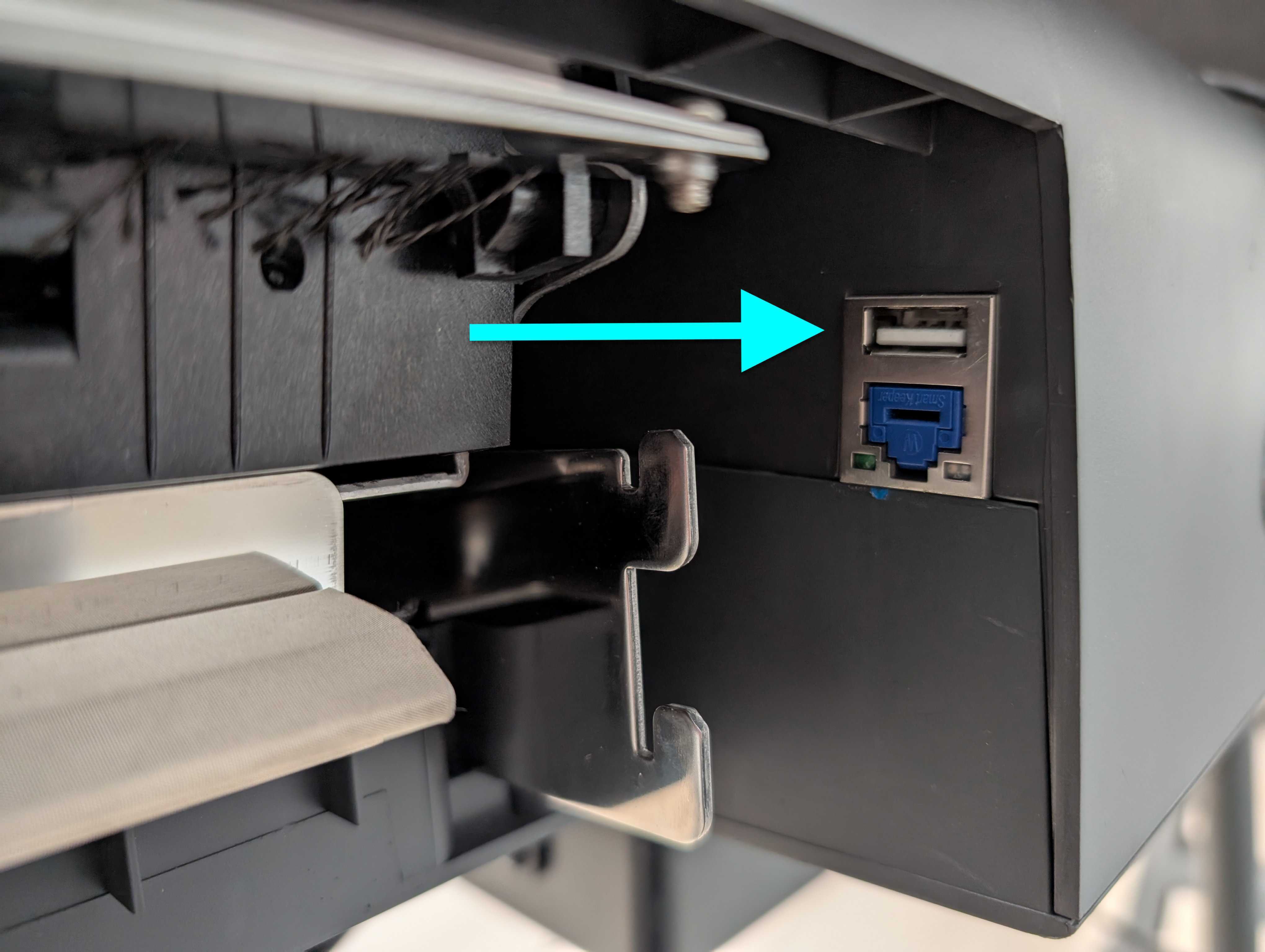

The smart card reader is beneath the accessible controller. The USB port is accessible at the ballot box attachment point. The ballot box must be removed to insert a USB drive. Seal and document the ballot box as required.

<div><figure><img src="https://2752676040-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FJtZutzGTdCzsGITrdiph%2Fuploads%2Fgit-blob-14a523596f2221c49eff27b1cd9b459e0c8a9e25%2FPXL_20241119_204113175.jpg?alt=media" alt="" width="375"><figcaption><p>Smart card reader under accessible controller</p></figcaption></figure> <figure><img src="https://2752676040-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FJtZutzGTdCzsGITrdiph%2Fuploads%2Fgit-blob-053ed8541cface6c4501a8e4857d93454793e4bb%2FPXL_20241125_222936358.jpg?alt=media" alt="" width="563"><figcaption><p>USB port hidden by the ballot box</p></figcaption></figure></div>

## Loading The Election Package

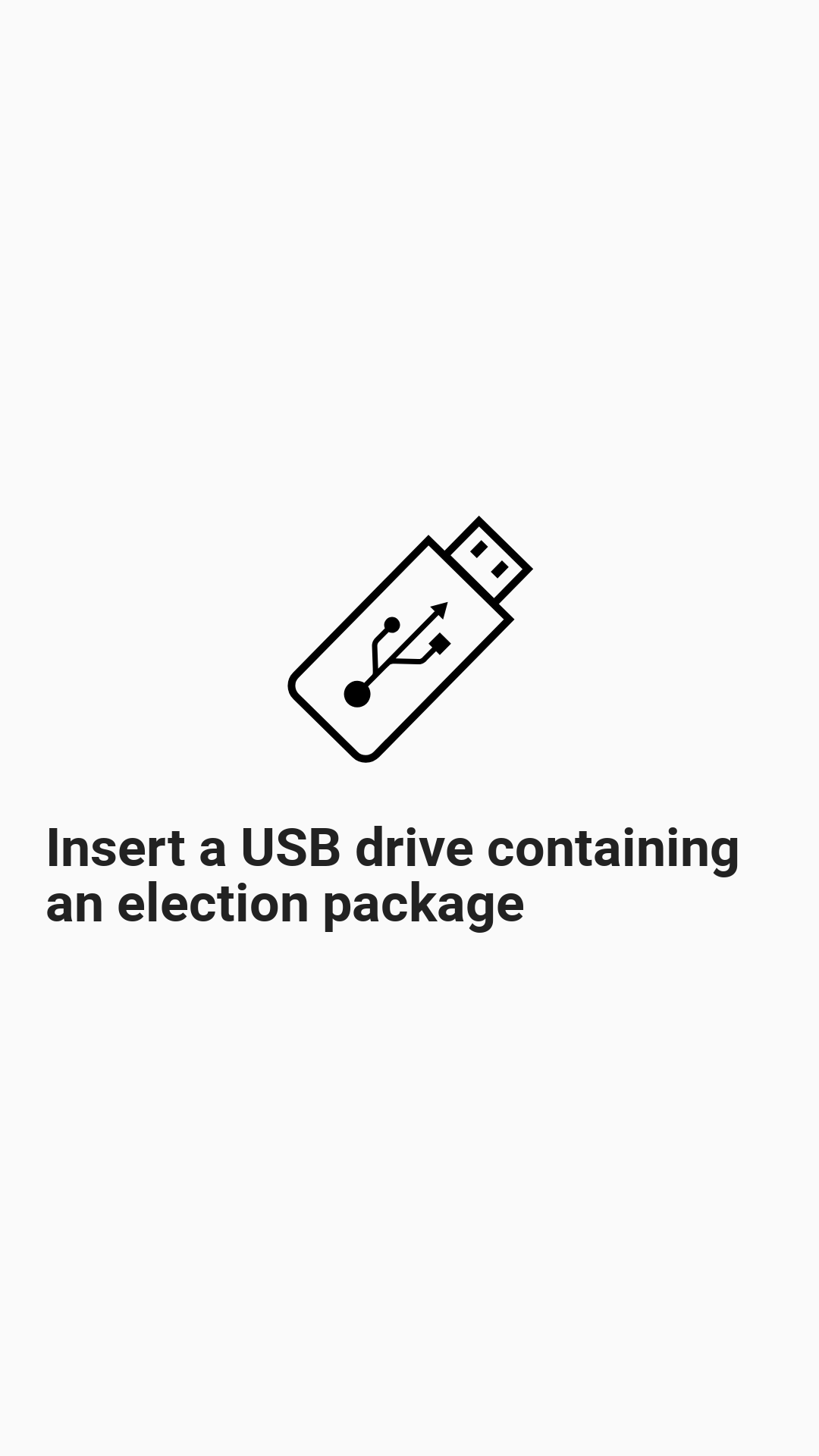

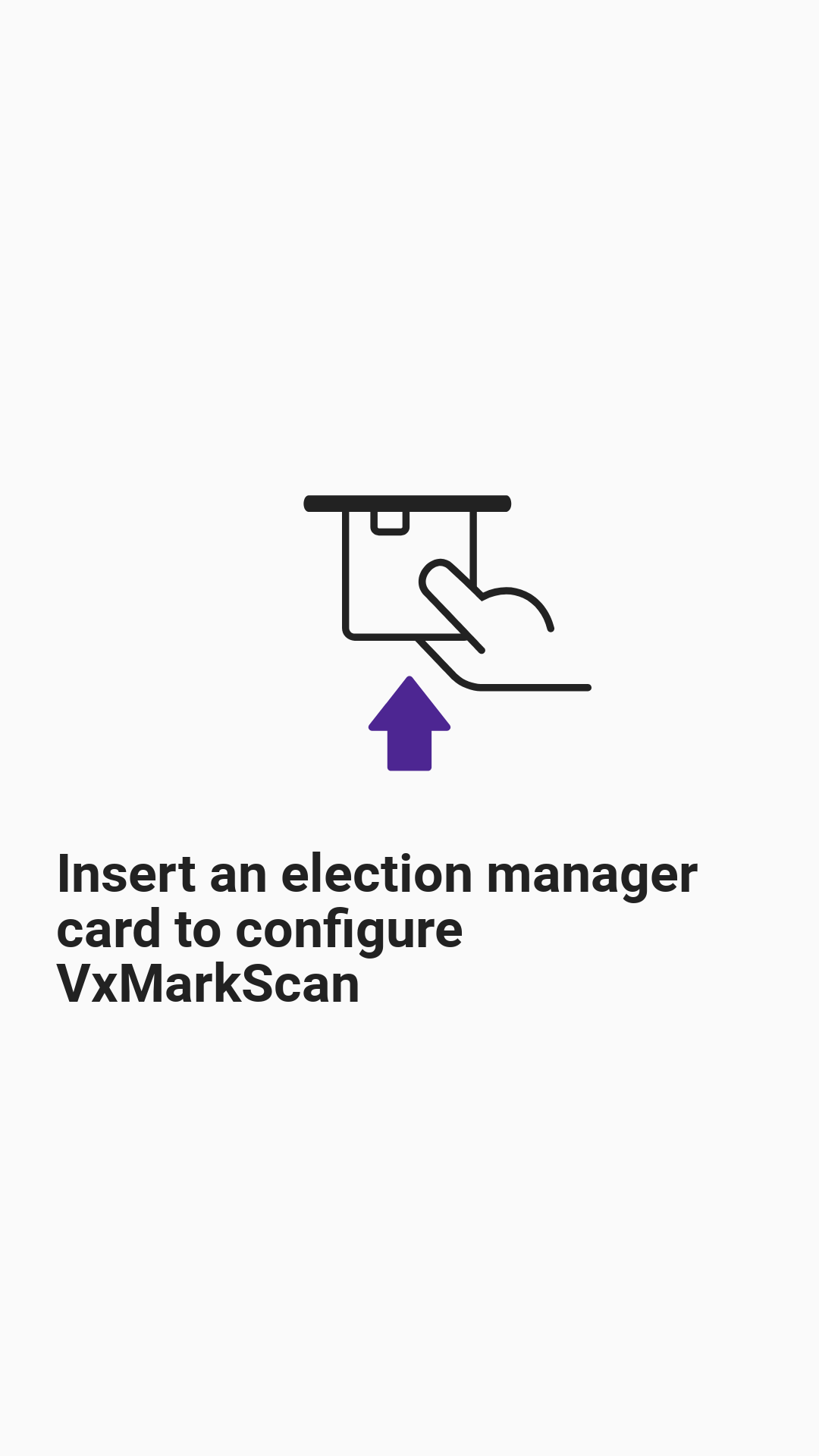

An unconfigured machine will prompt you to insert an election manager card to log in and then a USB drive with the election package saved from VxAdmin to configure.

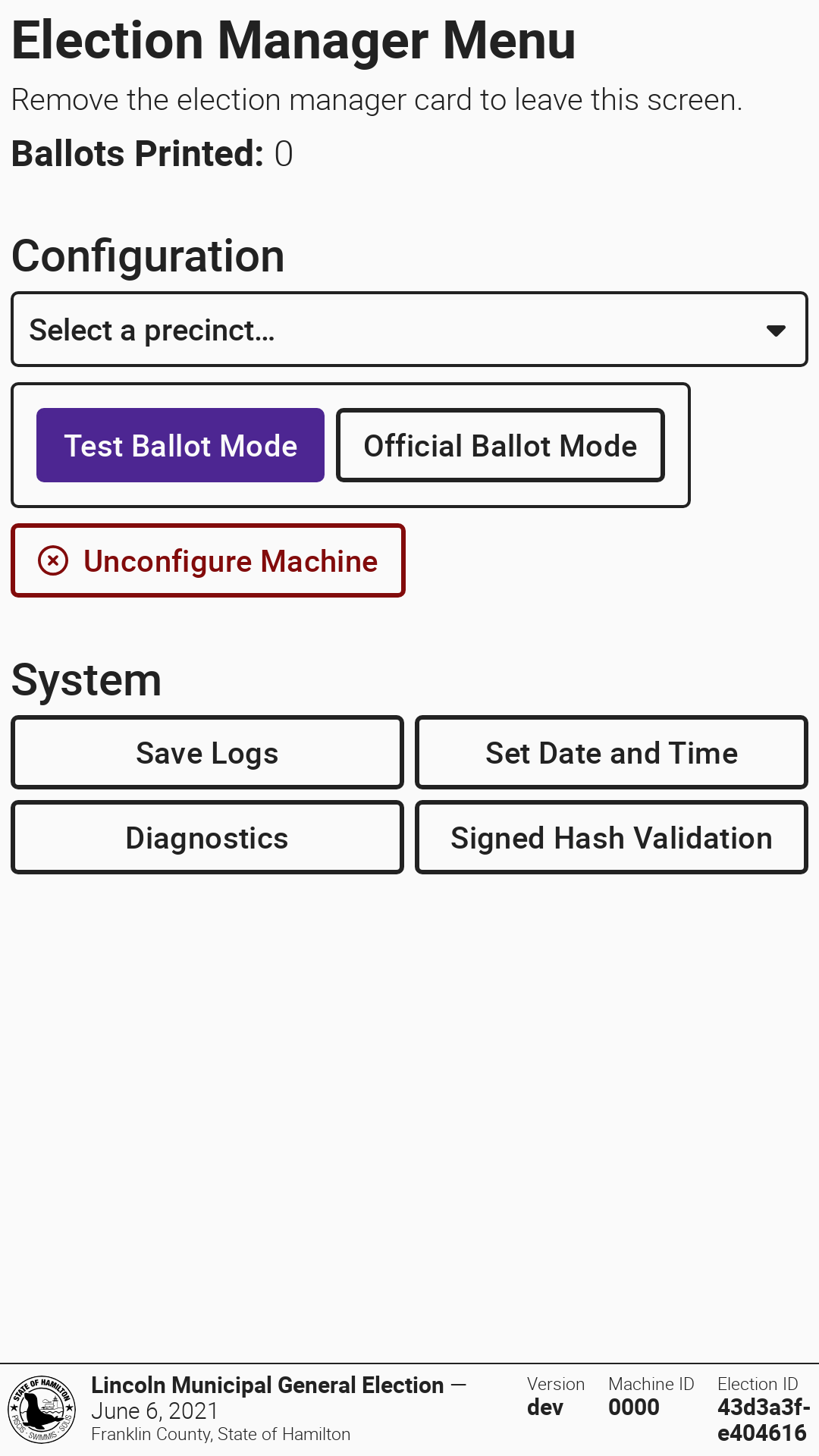

After the USB drive is inserted, VxMarkScan will automatically begin loading all ballot styles for the election. After the election package is done loading, the election manager menu screen will appear and VxMarkScan will be in test ballot mode.

<div><figure><img src="https://2752676040-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FJtZutzGTdCzsGITrdiph%2Fuploads%2Fgit-blob-20d25349f0a90a32c17932735ab648744f9892e7%2Fem-insert-card.png?alt=media" alt="" width="188"><figcaption></figcaption></figure> <figure><img src="https://2752676040-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FJtZutzGTdCzsGITrdiph%2Fuploads%2Fgit-blob-f77e80ab89a0459bbc7cd9020c49206dd15d4445%2Fem-insert-usb.png?alt=media" alt="" width="188"><figcaption></figcaption></figure> <figure><img src="https://2752676040-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FJtZutzGTdCzsGITrdiph%2Fuploads%2Fgit-blob-6700b590a042dd6bfe9c10b7a72d5079eb3947d4%2Fem-menu.png?alt=media" alt="" width="188"><figcaption></figcaption></figure></div>

## Setting Ballot Mode

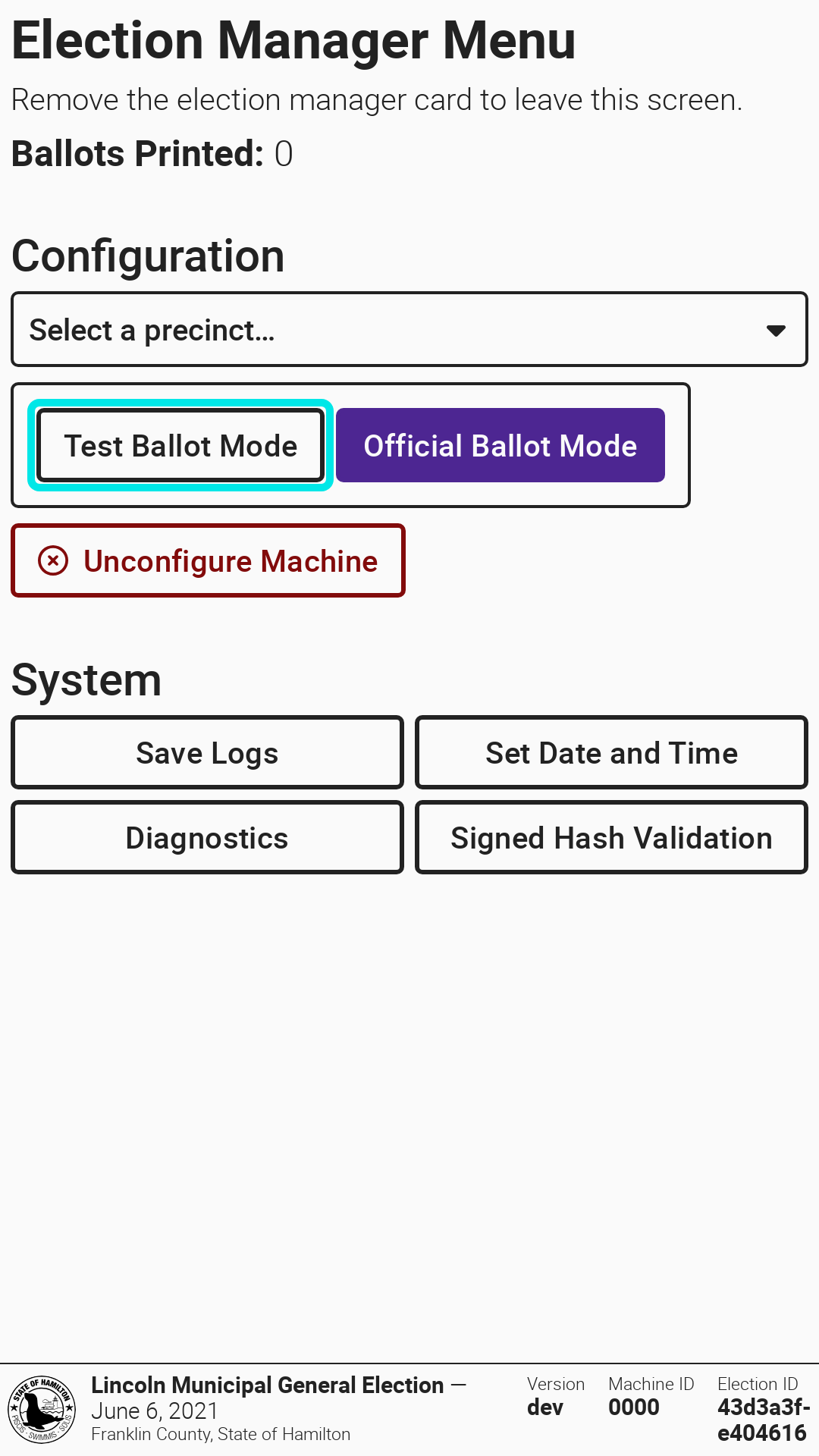

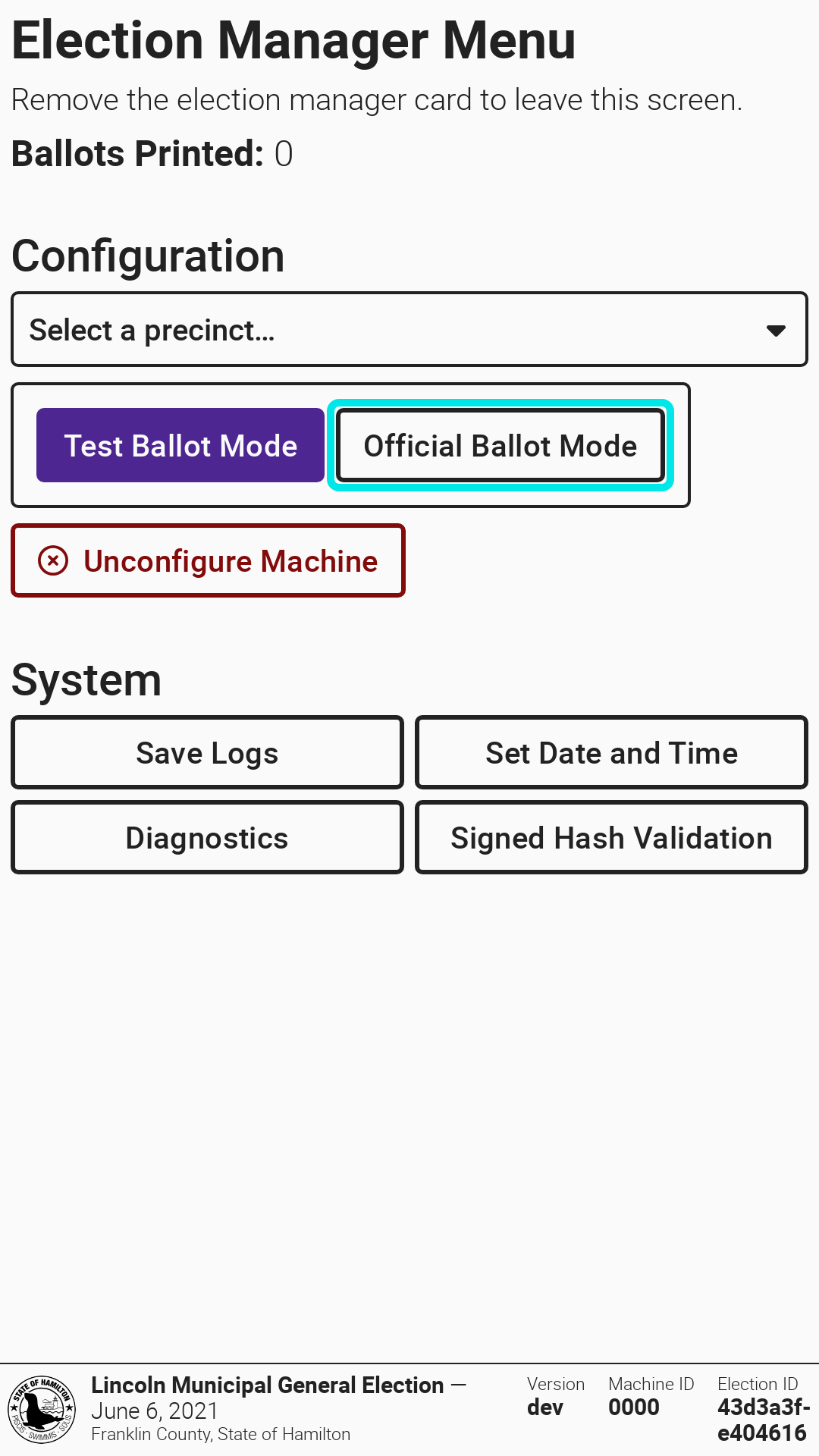

Use the toggle button to switch between *`Test Ballot Mode`* and *`Official Ballot Mode`*. The machine must be in official ballot mode on election day. Review the [l-and-a-overview](https://docs.voting.works/vxsuite-user-manual-v4/logic-and-accuracy-pre-election-testing/l-and-a-overview "mention") instructions to understand which mode to use during logic and accuracy testing.

<div><figure><img src="https://2752676040-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FJtZutzGTdCzsGITrdiph%2Fuploads%2Fgit-blob-1a21b2d37dcc3f2bb6e70ae92ef46460af51b7d0%2Fem-menu-official-ballot-mode-button.png?alt=media" alt="" width="188"><figcaption></figcaption></figure> <figure><img src="https://2752676040-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FJtZutzGTdCzsGITrdiph%2Fuploads%2Fgit-blob-929233c2001b91ec74457caa37e286f215d7b510%2Fem-menu-test-ballot-mode-button.png?alt=media" alt="" width="188"><figcaption></figcaption></figure></div>

## Remove Election Data & Configuration

To remove election configuration (and all data) from VxMarkScan:

* [ ] Log in with an election manager card

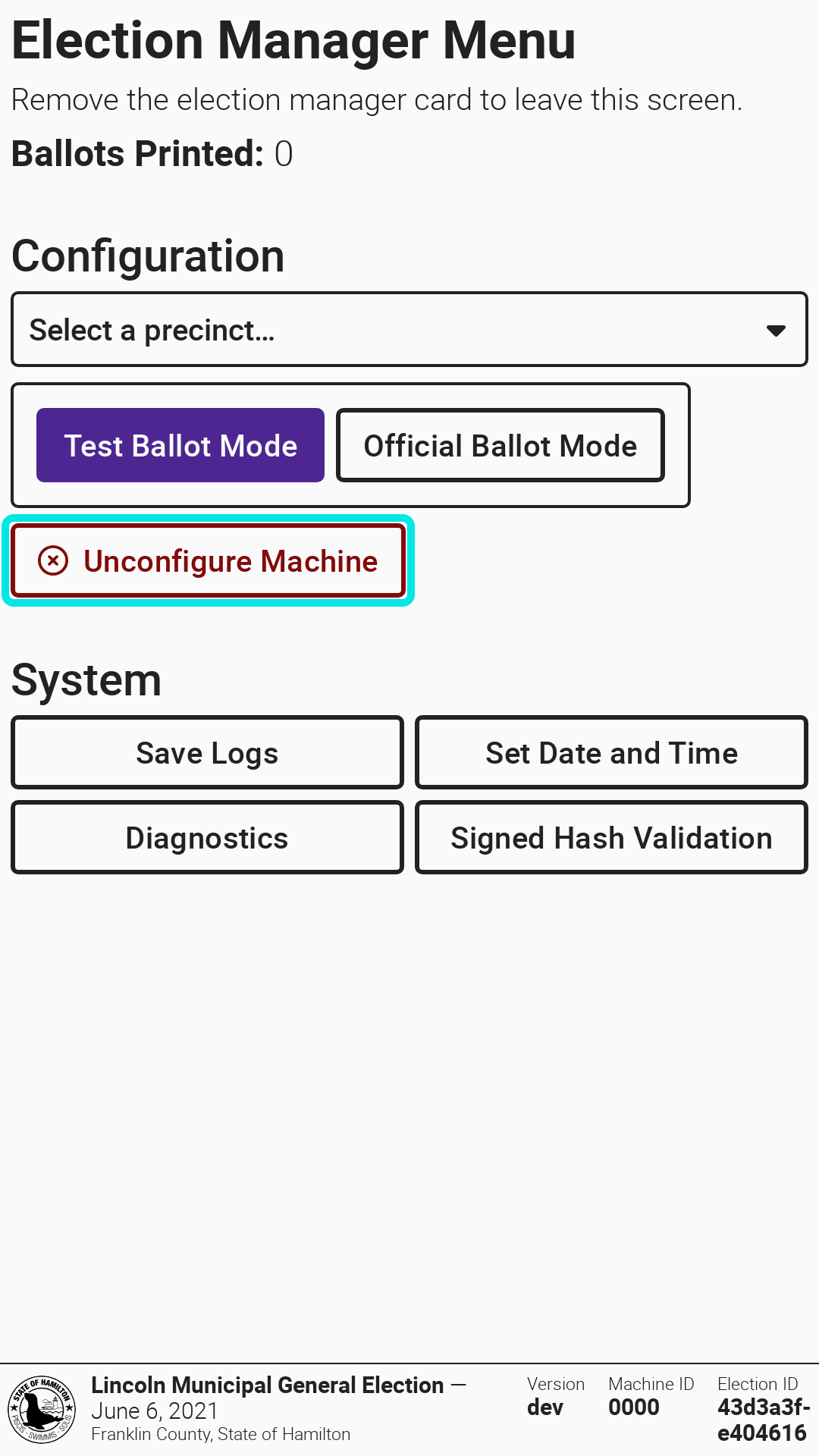

* [ ] Select *`Unconfigure Machine`*

<figure><img src="https://2752676040-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FJtZutzGTdCzsGITrdiph%2Fuploads%2Fgit-blob-b42b710cf921c8d214b5c78f571c3a924c0ccaa8%2Fem-menu-unconfigure-machine-button.png?alt=media" alt="" width="188"><figcaption></figcaption></figure>

* [ ] Confirm by selecting *`Delete All Election Data`*

You can now re-configure VxMarkScan with a different election package.
