# Configure VxCentralScan

{% hint style="info" %}
The following steps must be completed by an election manager.
{% endhint %}

Before you configure VxCentralScan, you must set up the machine. Follow the steps in the [vxcentralscan-hardware-setup](https://docs.voting.works/vxsuite-user-manual-v4/vxcentralscan/vxcentralscan-hardware-setup "mention").

To configure **VxCentralScan**, you must do two things in **VxAdmin**:

1. [Save the election package](https://docs.voting.works/vxsuite-user-manual-v4/vxadmin-system-setup/save-election-package) to a USB drive.
2. [Create an election manager card](https://docs.voting.works/vxsuite-user-manual-v4/vxadmin-system-setup/programming-cards).

## Load Election Package

Once the election package is saved to a USB drive, you can load the file to VxCentralScan.

[Set up the VxCentralScan hardware](https://docs.voting.works/vxsuite-user-manual-v4/vxcentralscan/vxcentralscan-hardware-setup) and turn on the VxCentralScan laptop.

<div><figure><img src="https://2752676040-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FJtZutzGTdCzsGITrdiph%2Fuploads%2Fgit-blob-2c9616cca13bcb32a62e61a551058b399d1bfbfd%2Fem-insert-card-screen.png?alt=media" alt="" width="375"><figcaption></figcaption></figure> <figure><img src="https://2752676040-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FJtZutzGTdCzsGITrdiph%2Fuploads%2Fgit-blob-b5c22f54e040df579d38e81ac9781ce559c0627b%2Fsmartcard-laptop-16_10.png?alt=media" alt="" width="375"><figcaption></figcaption></figure></div>

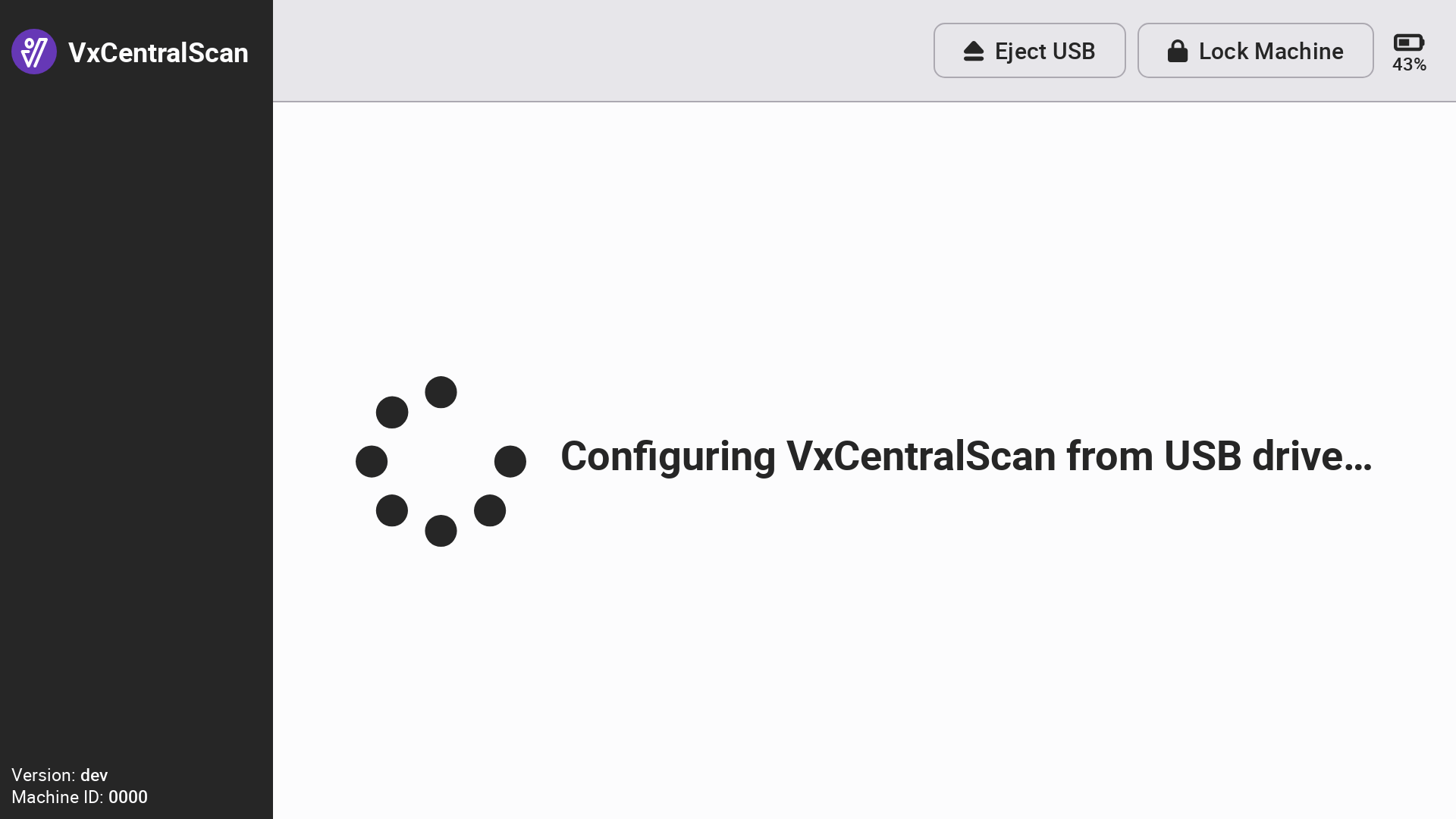

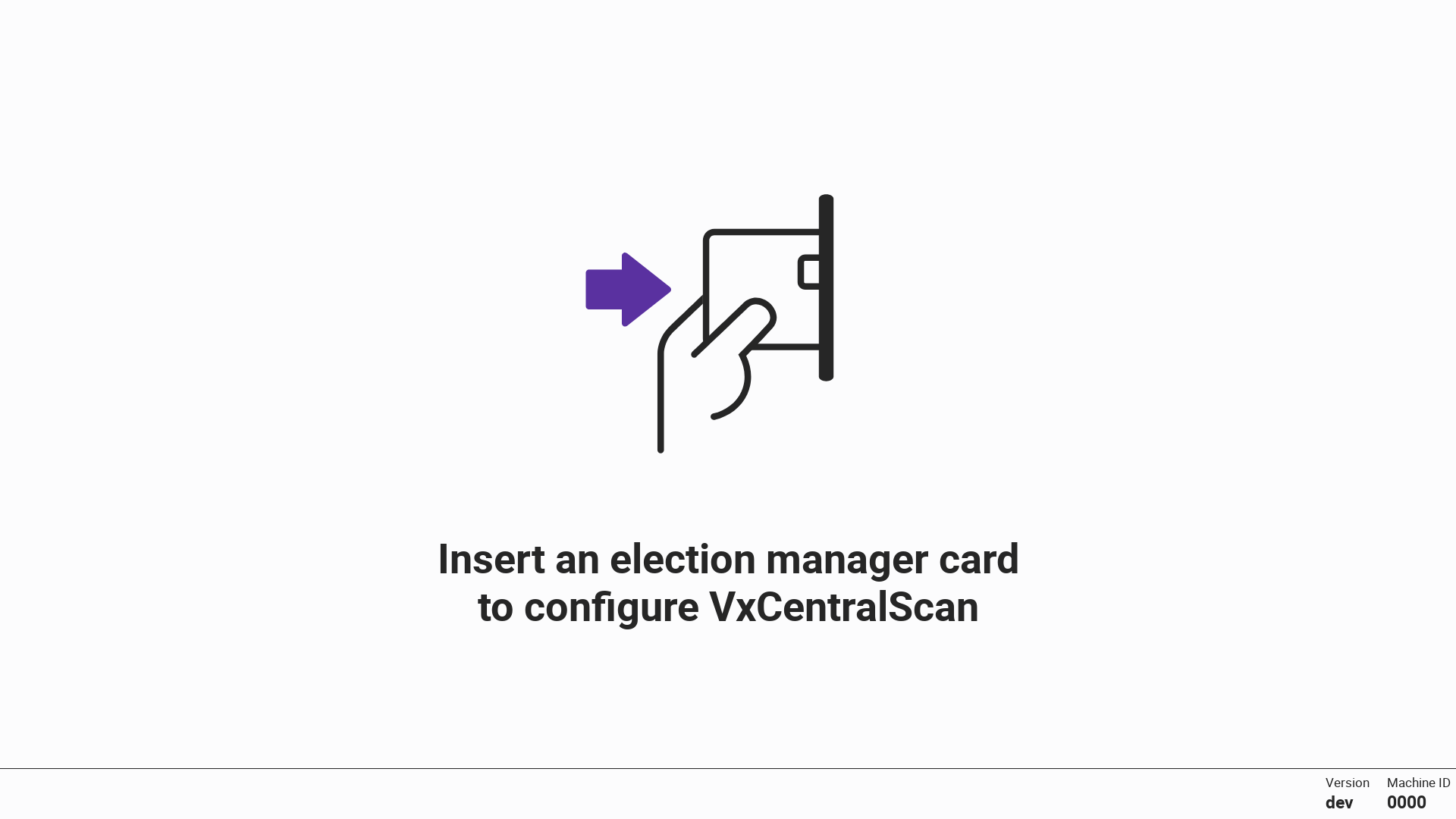

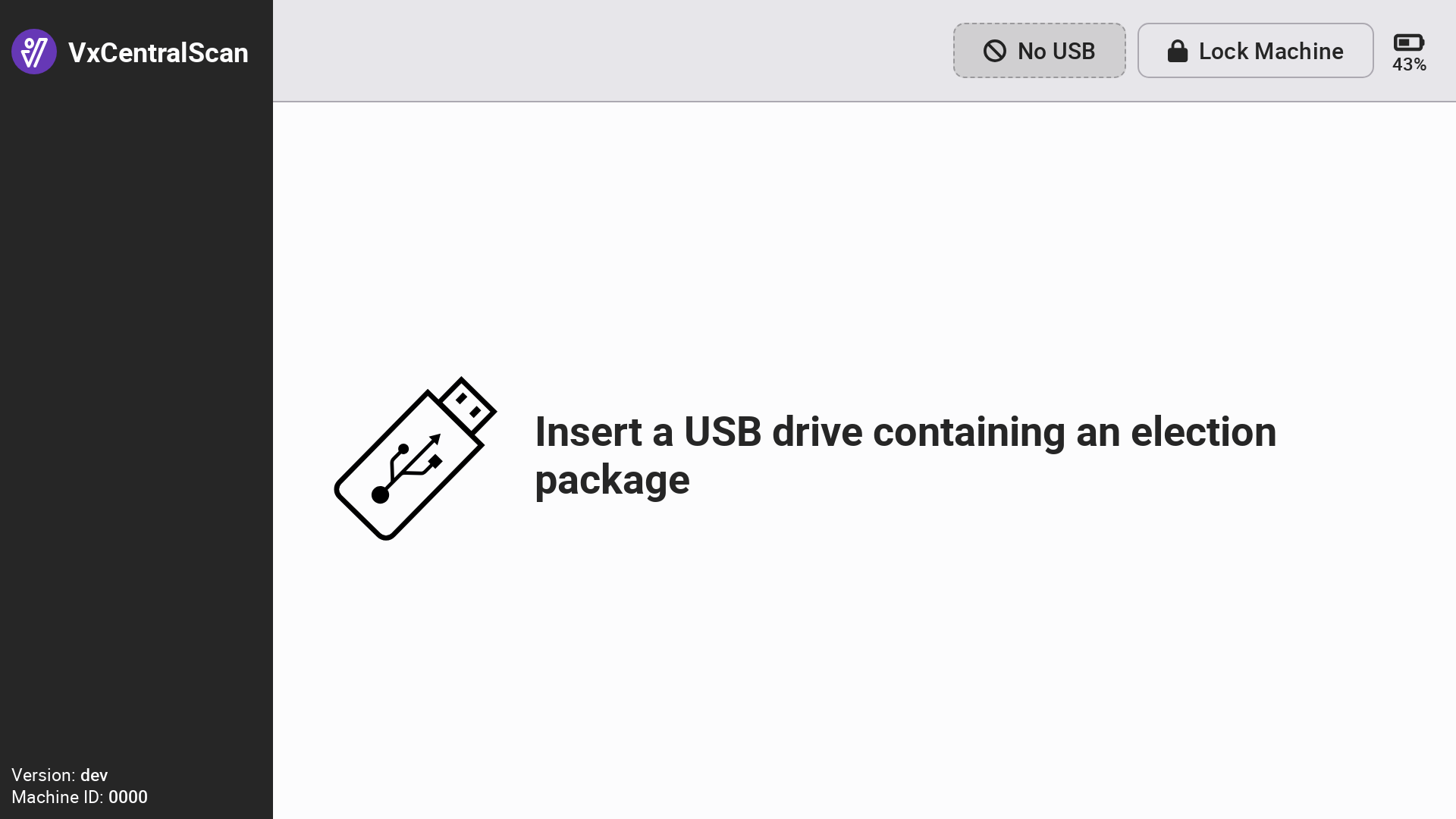

Use an election manager card to unlock the machine. Insert the USB drive with the election package. The election package will automatically load.

<div><figure><img src="https://2752676040-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FJtZutzGTdCzsGITrdiph%2Fuploads%2Fgit-blob-aa4e6be567c203ec6bdb9aa7ff63acfd3a69747c%2Fem-insert-usb.png?alt=media" alt="" width="375"><figcaption></figcaption></figure> <figure><img src="https://2752676040-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FJtZutzGTdCzsGITrdiph%2Fuploads%2Fgit-blob-5495a51e304dfd448e154c6250d8bd16a0be4a03%2Fem-configuring.png?alt=media" alt="" width="375"><figcaption></figcaption></figure></div>

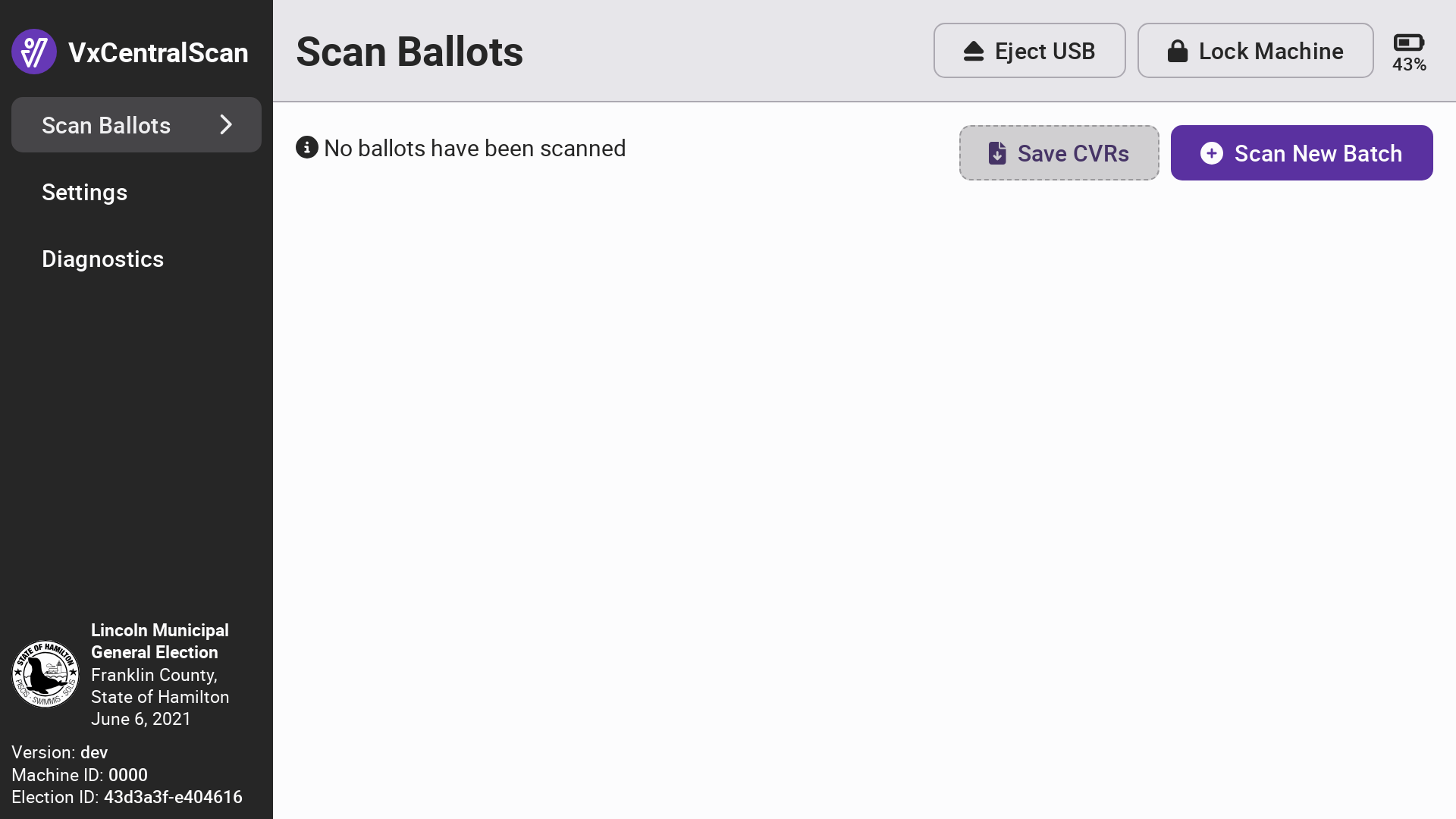

VxCentralScan is now configured and in test mode. The screen will show *No ballots have been scanned* and election summary information (name, date, jurisdiction, etc.) will be shown in the bottom left corner of the screen.

<figure><img src="https://2752676040-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FJtZutzGTdCzsGITrdiph%2Fuploads%2Fgit-blob-8a44adf2a8944bad0b86b96fbea00ec0b4ec982a%2Fem-scan-ballots-empty.png?alt=media" alt="" width="375"><figcaption></figcaption></figure>

VxCentralScan is now ready for scanning.

## Remove Election

To remove an election package and reset VxCentralScan:

* [ ] Insert an Election Manager Card
* [ ] Select *`Settings`* from the side menu
* [ ] Select *`Unconfigure Machine`*
* [ ] Confirm by selecting *`Delete All Election Data`*

<div><figure><img src="https://2752676040-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FJtZutzGTdCzsGITrdiph%2Fuploads%2Fgit-blob-bd05e9b2f1766e8d7a3ff6595554e1042135dcf3%2Fem-settings-unconfigure-machine-button.png?alt=media" alt="" width="375"><figcaption></figcaption></figure> <figure><img src="https://2752676040-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FJtZutzGTdCzsGITrdiph%2Fuploads%2Fgit-blob-8f36eec71ac14dcd59c497d43a9b13a9d33319e9%2Fem-settings-confirm-unconfigure-button.png?alt=media" alt="" width="375"><figcaption></figcaption></figure></div>

You can now reconfigure VxCentralScan with a different election package.

{% hint style="info" %}
VxCentralScan may also be unconfigured with a system administrator card.
{% endhint %}
