Packing Up VxScan

PreviousClosing PollsNextTally Results

Last updated 2 months ago

Pack up VxScan through the following steps:

  1. Pack up the scanner:

  1. Pack up the ballot box:

The scanner must be stored securely in a climate-controlled environment. The ballot box can be stored wherever convenient.

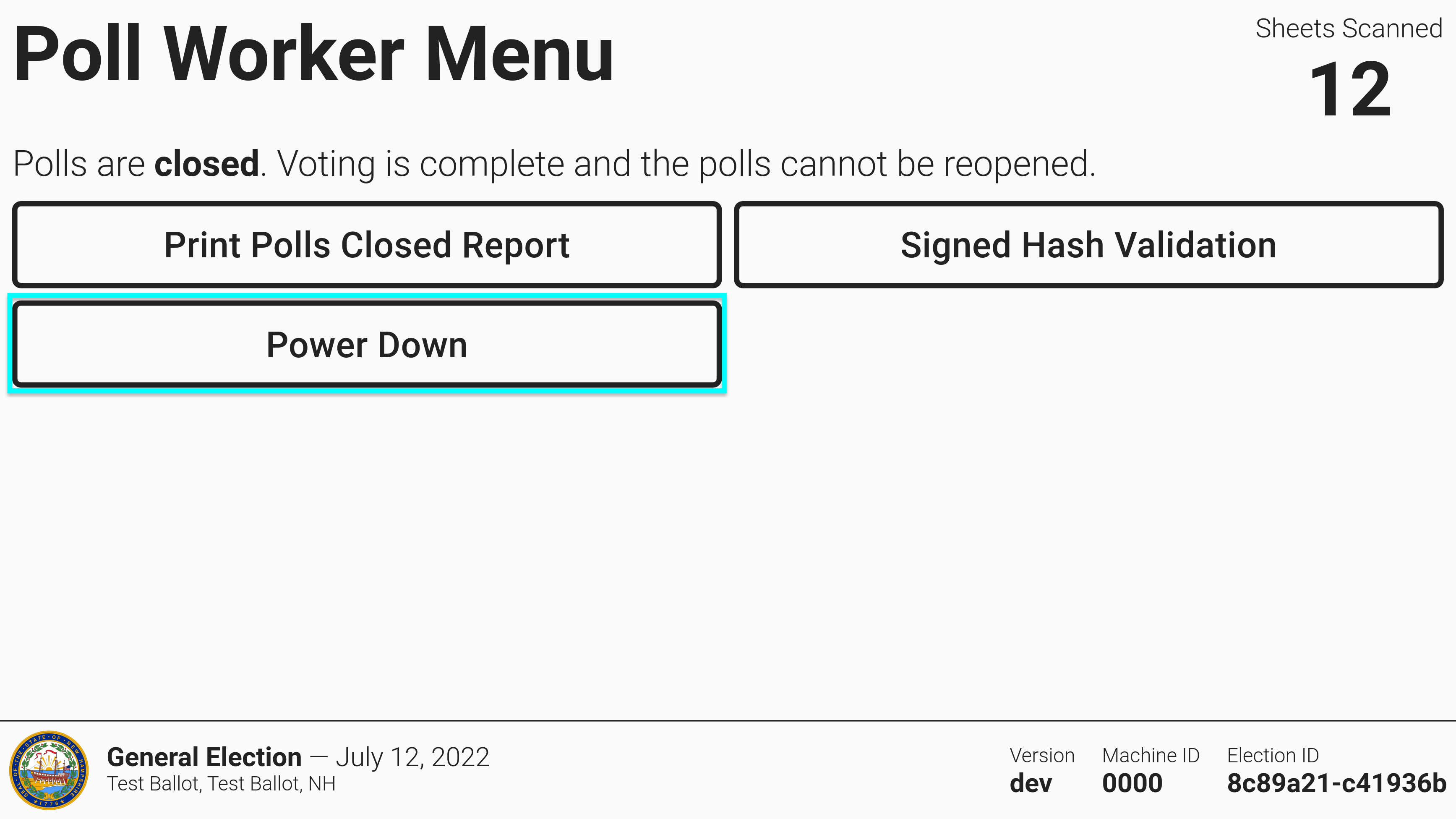

Insert the poll worker card and select Power Down

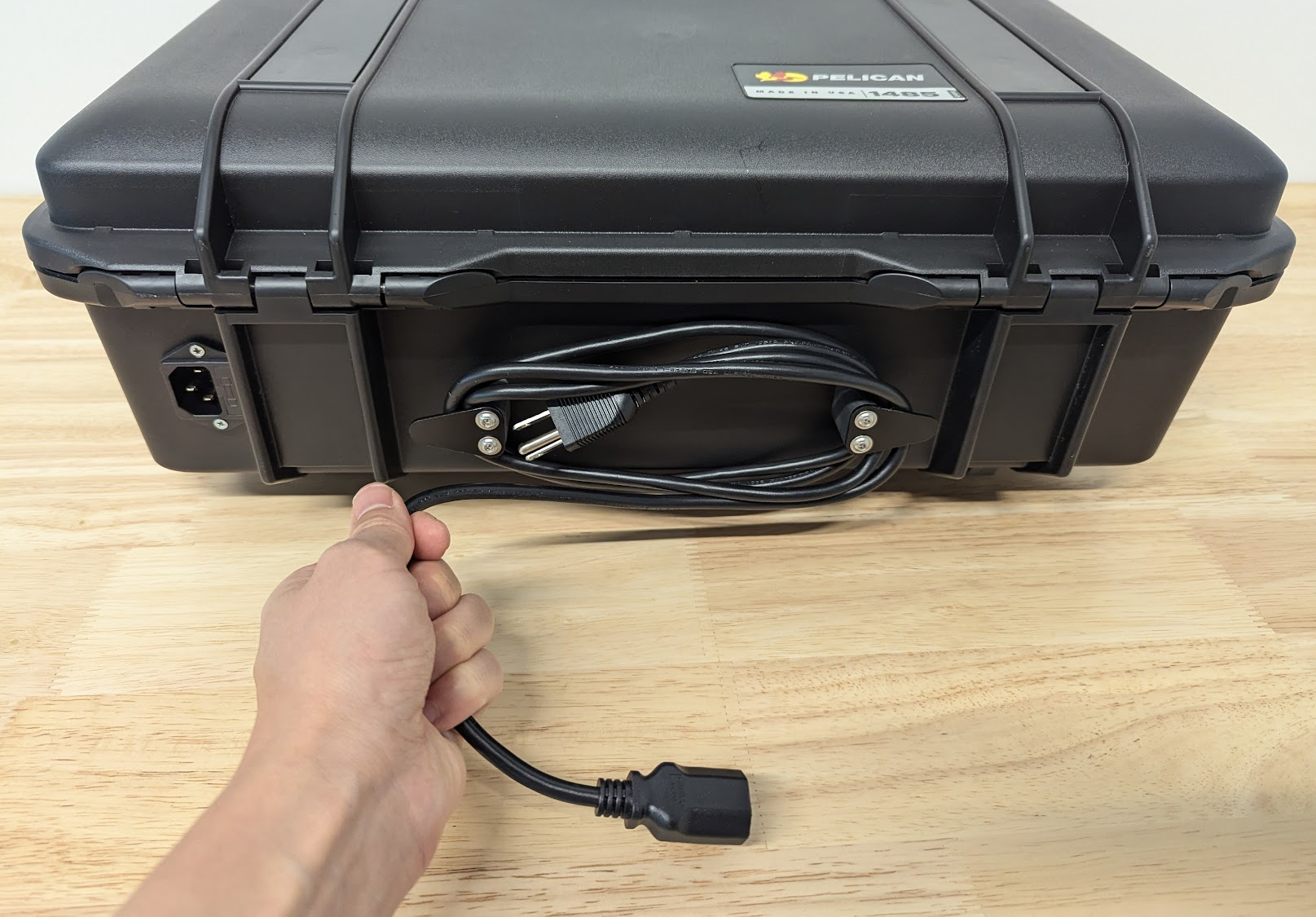

Remove and wrap the power cord

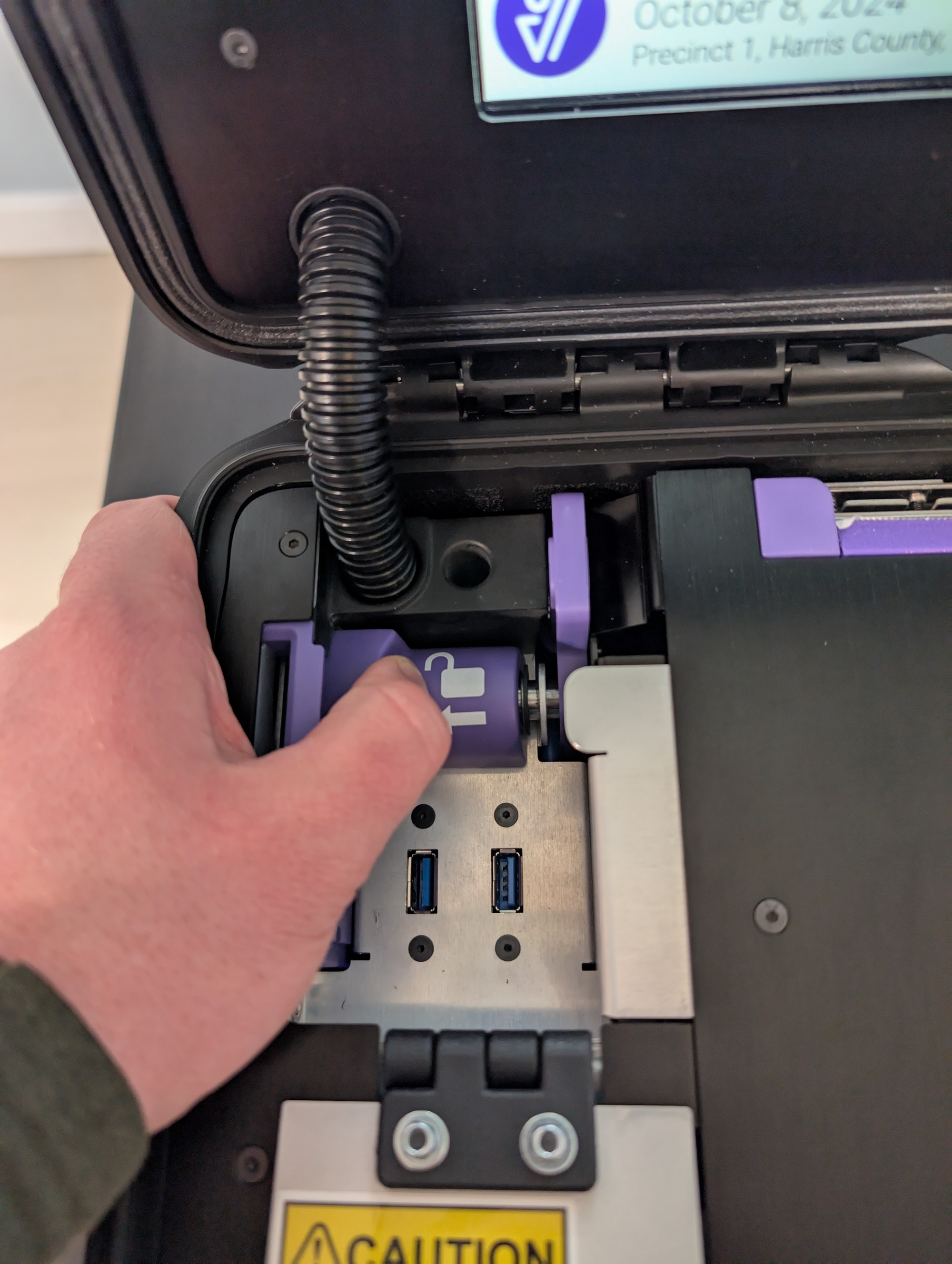

Push the security bolt release

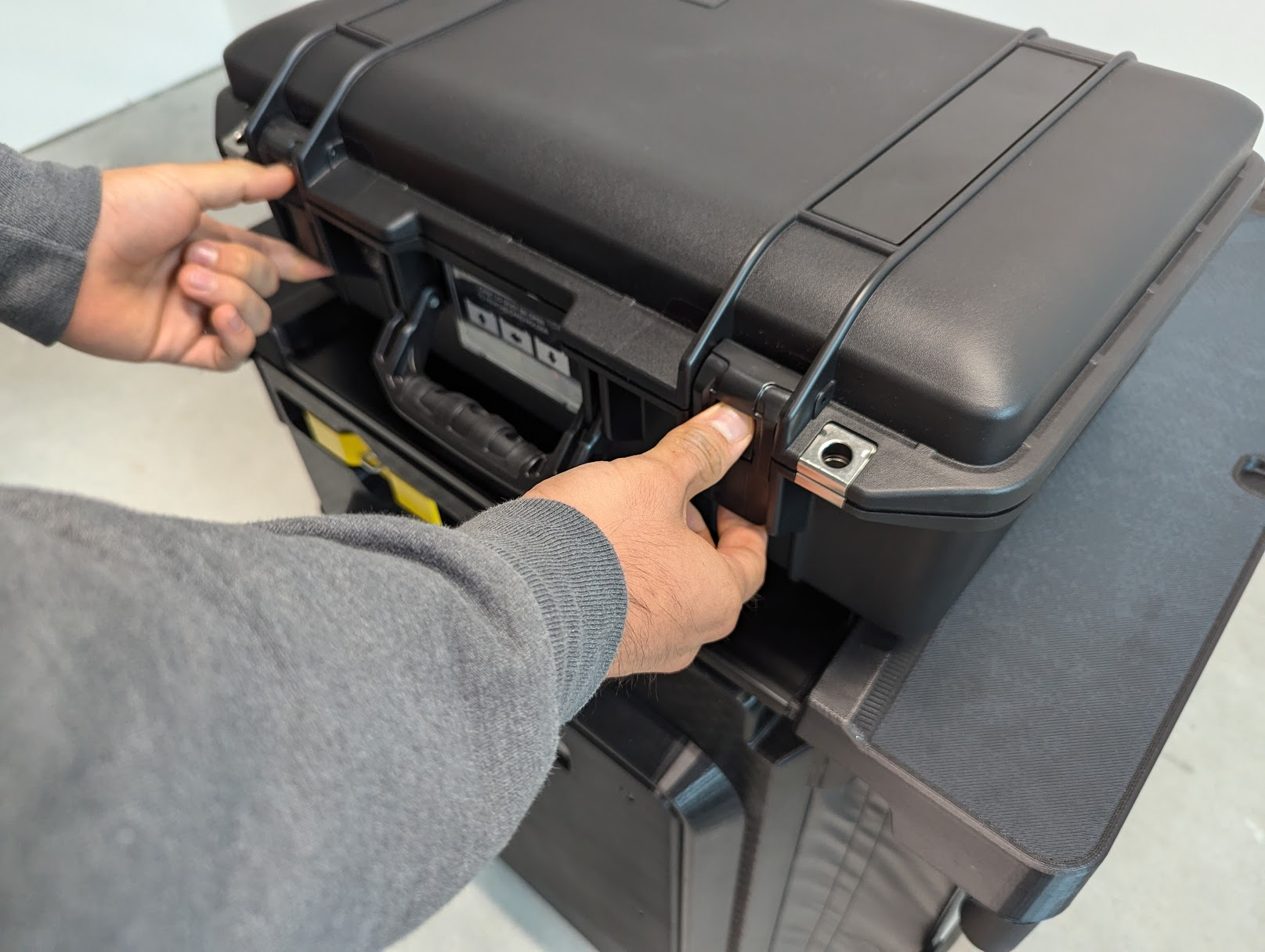

Close the case lid, latch, and seal

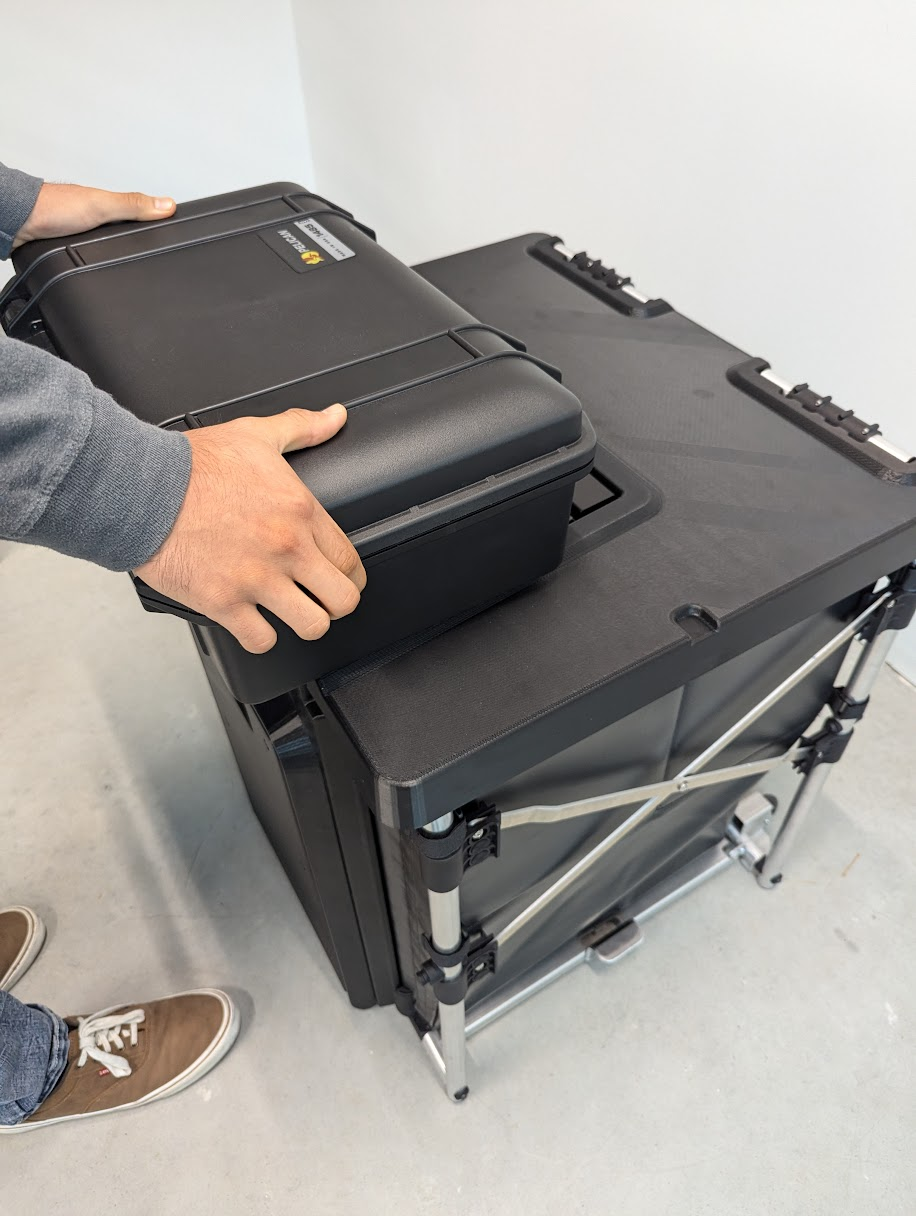

Pull the case off the ballot box

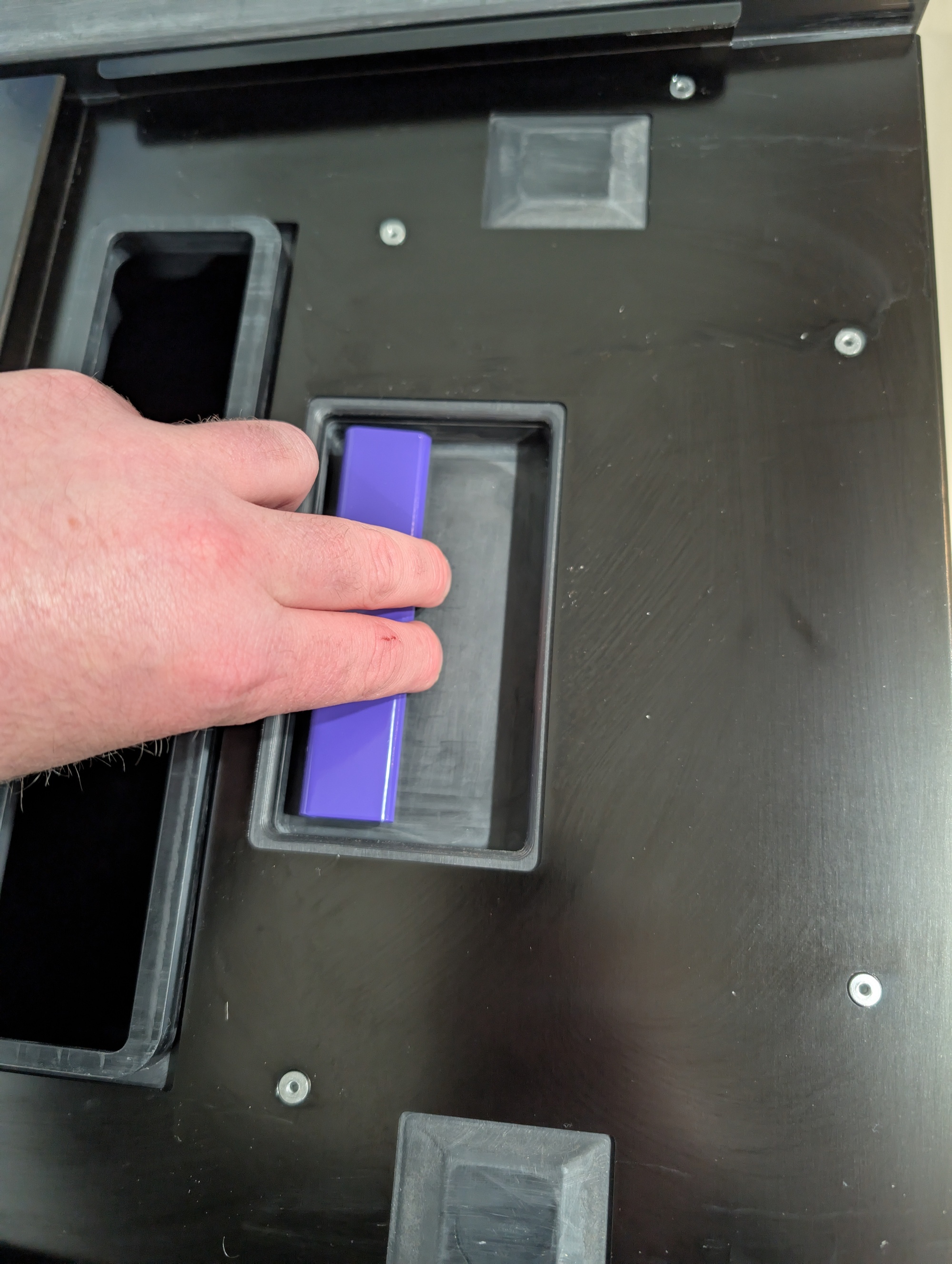

Press lid latch

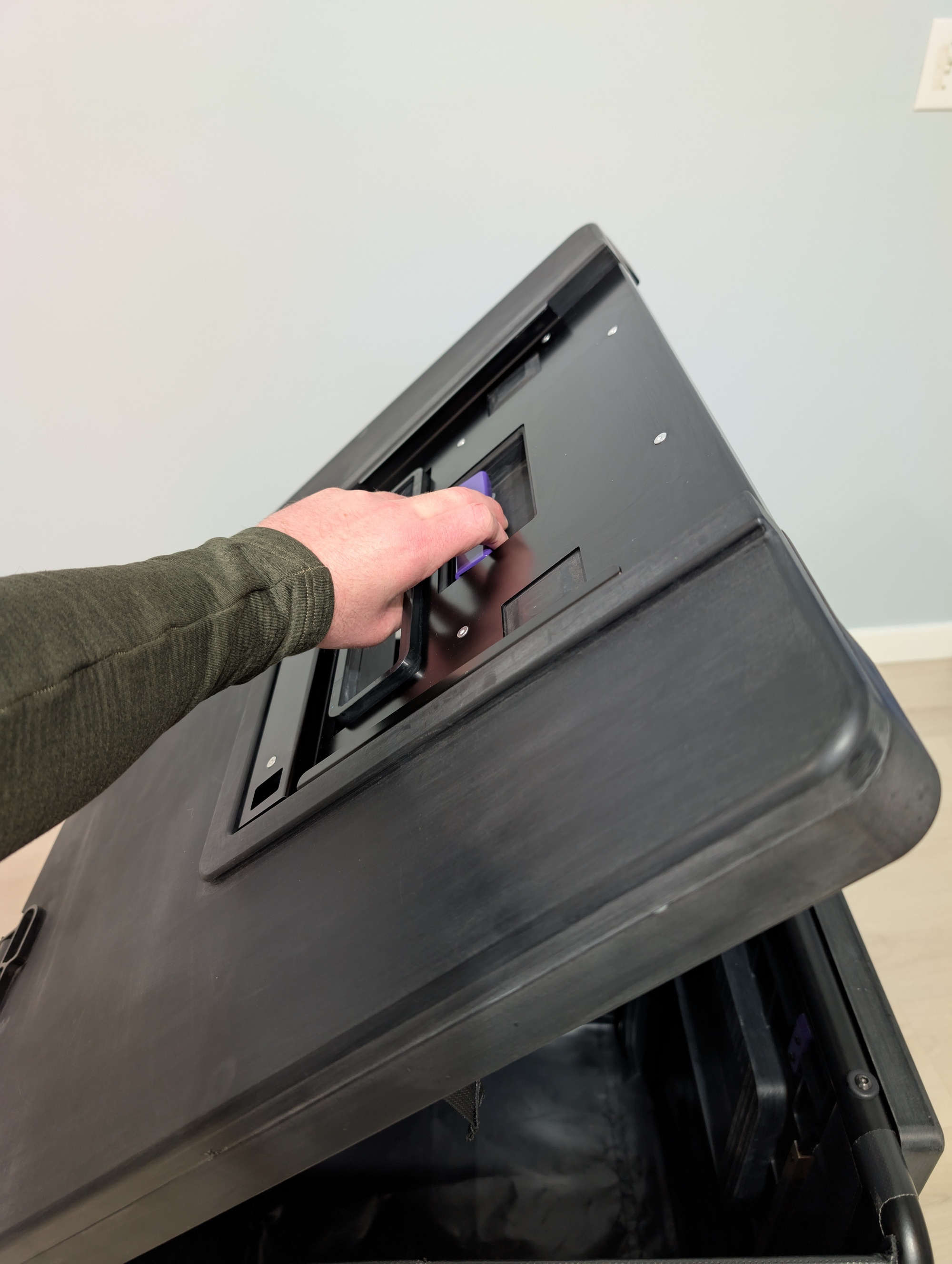

Lift lid
Set lid to the side

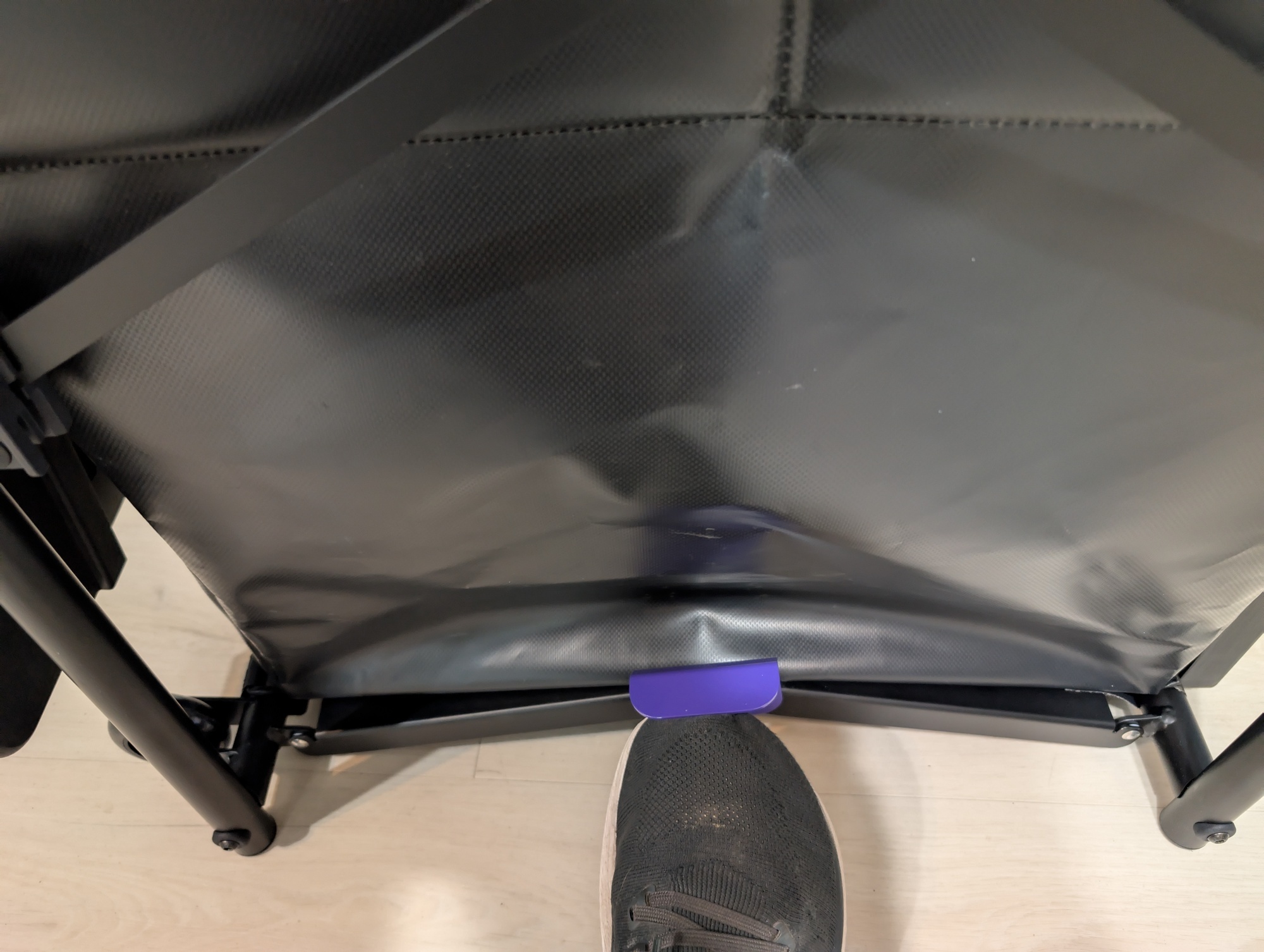

Using the foot hook

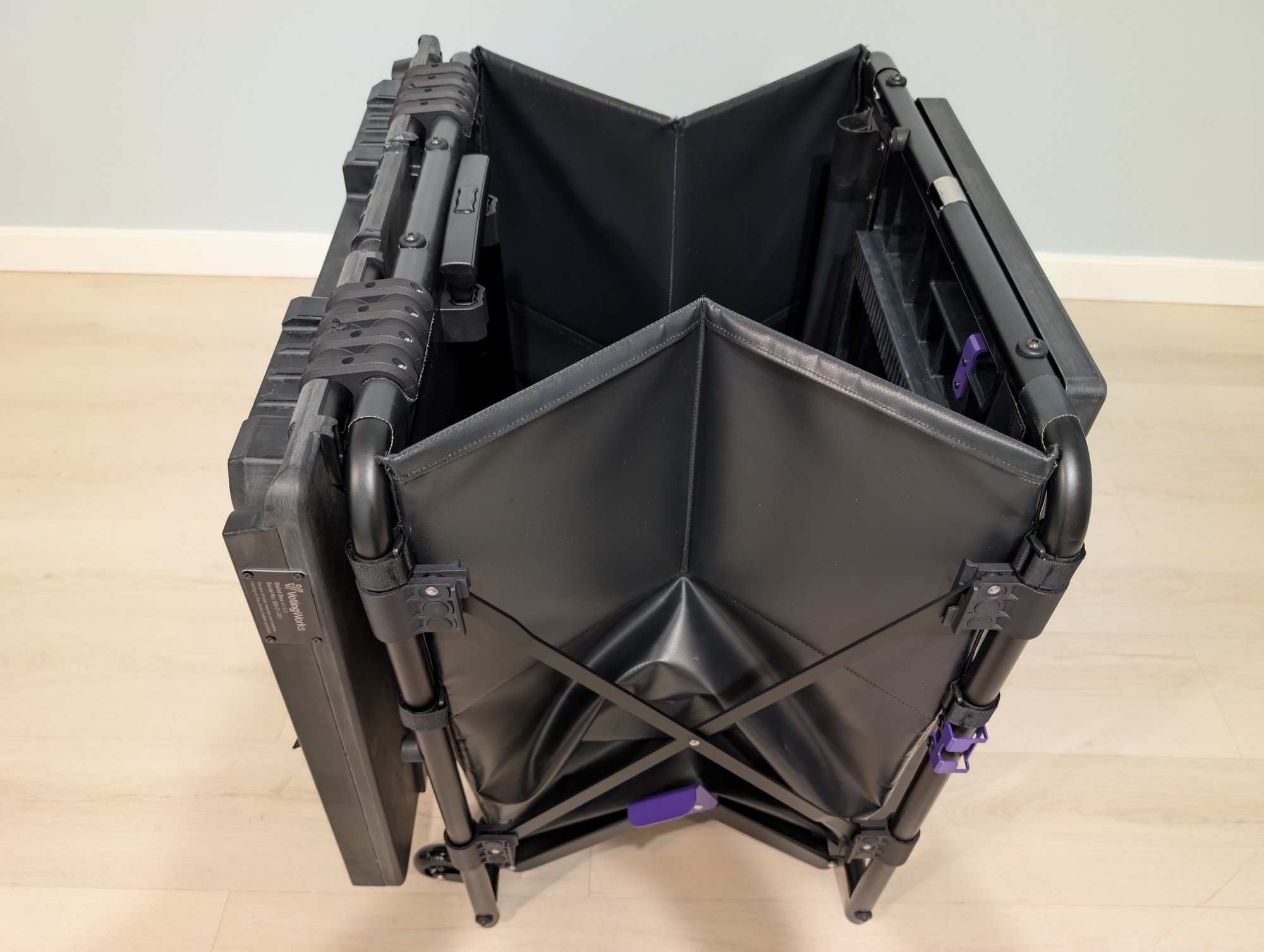

Collapsing the ballot box

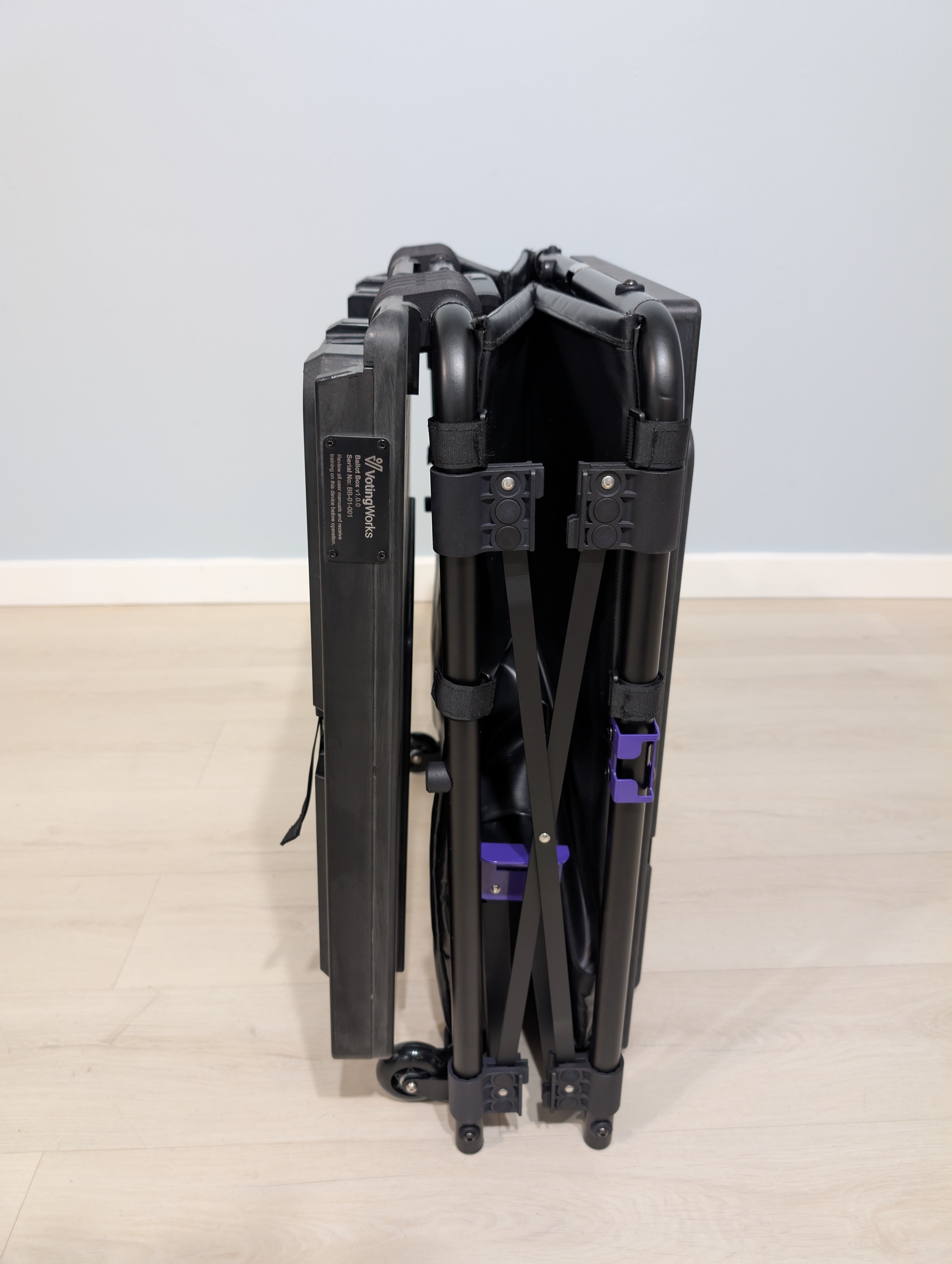

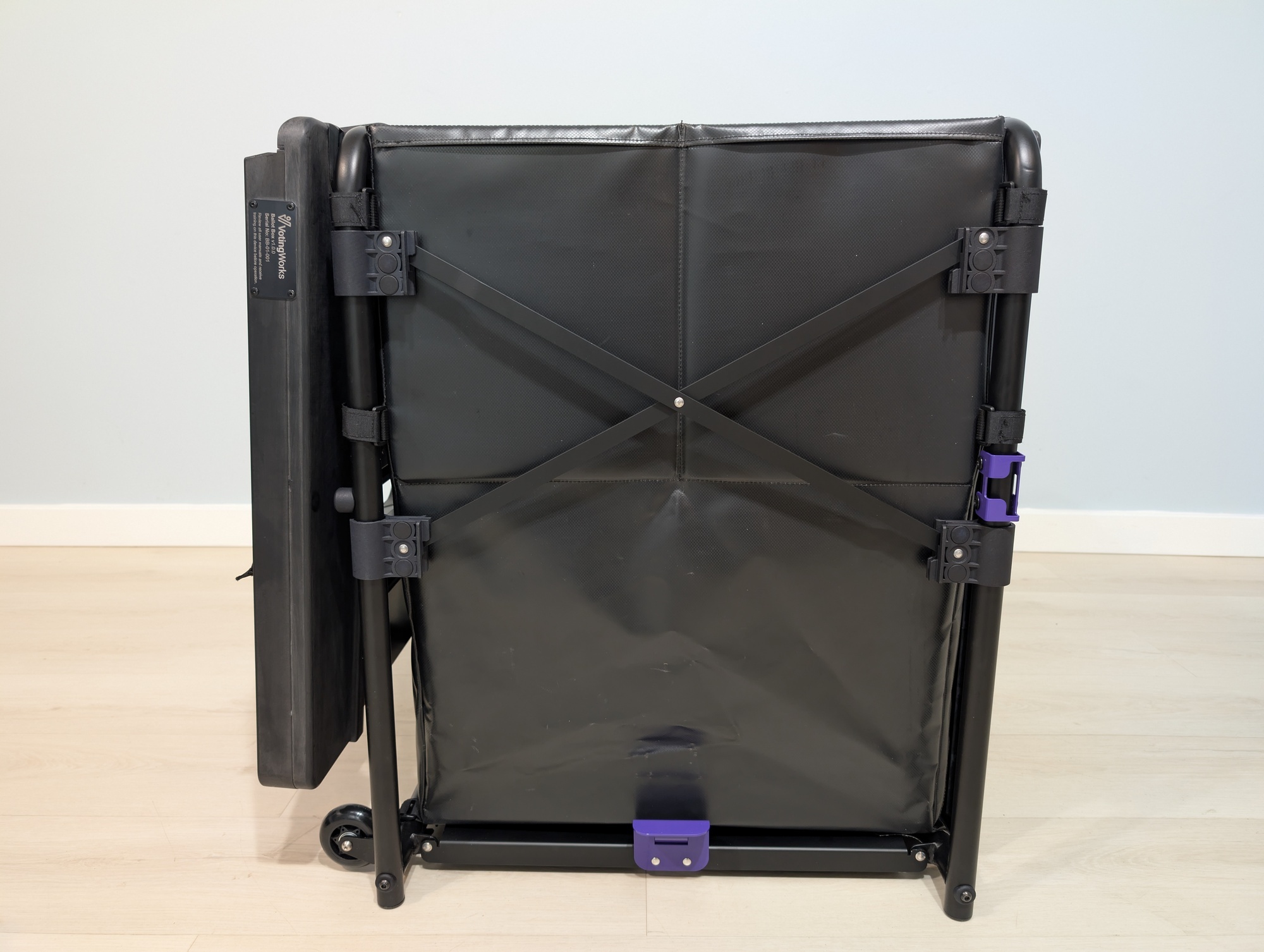

Box when collapsed

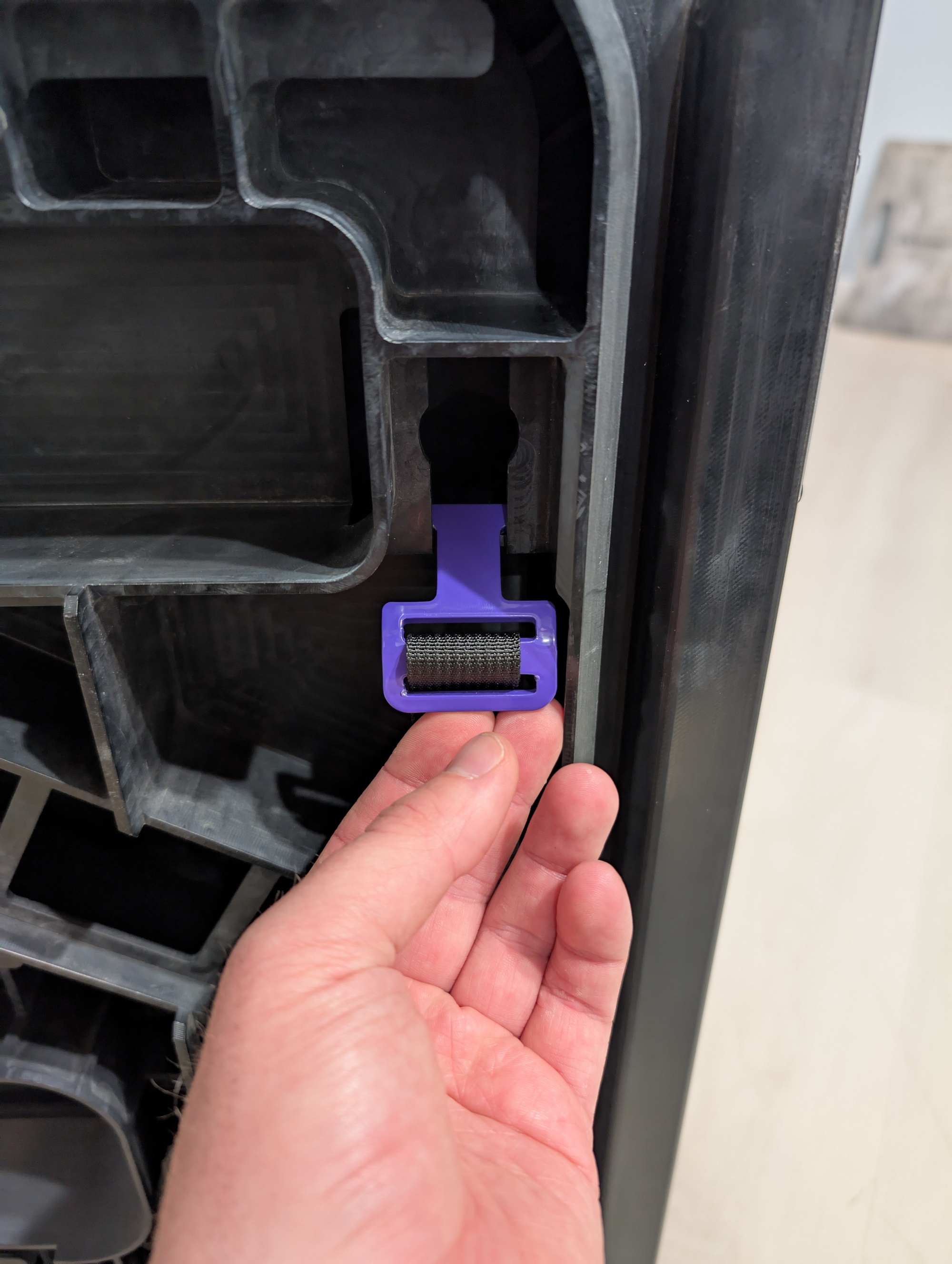

Remove straps from lid

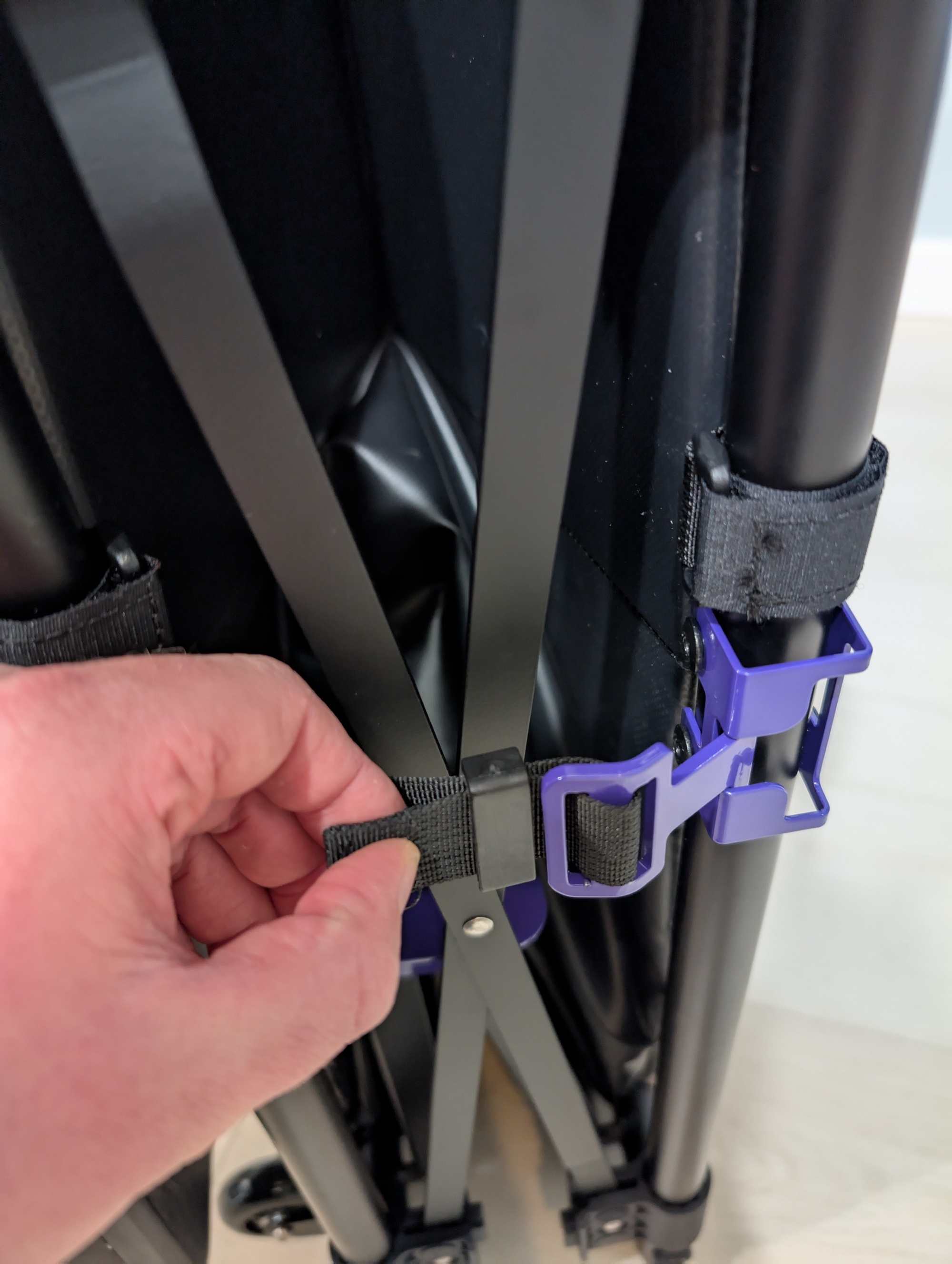

Fasten straps around side

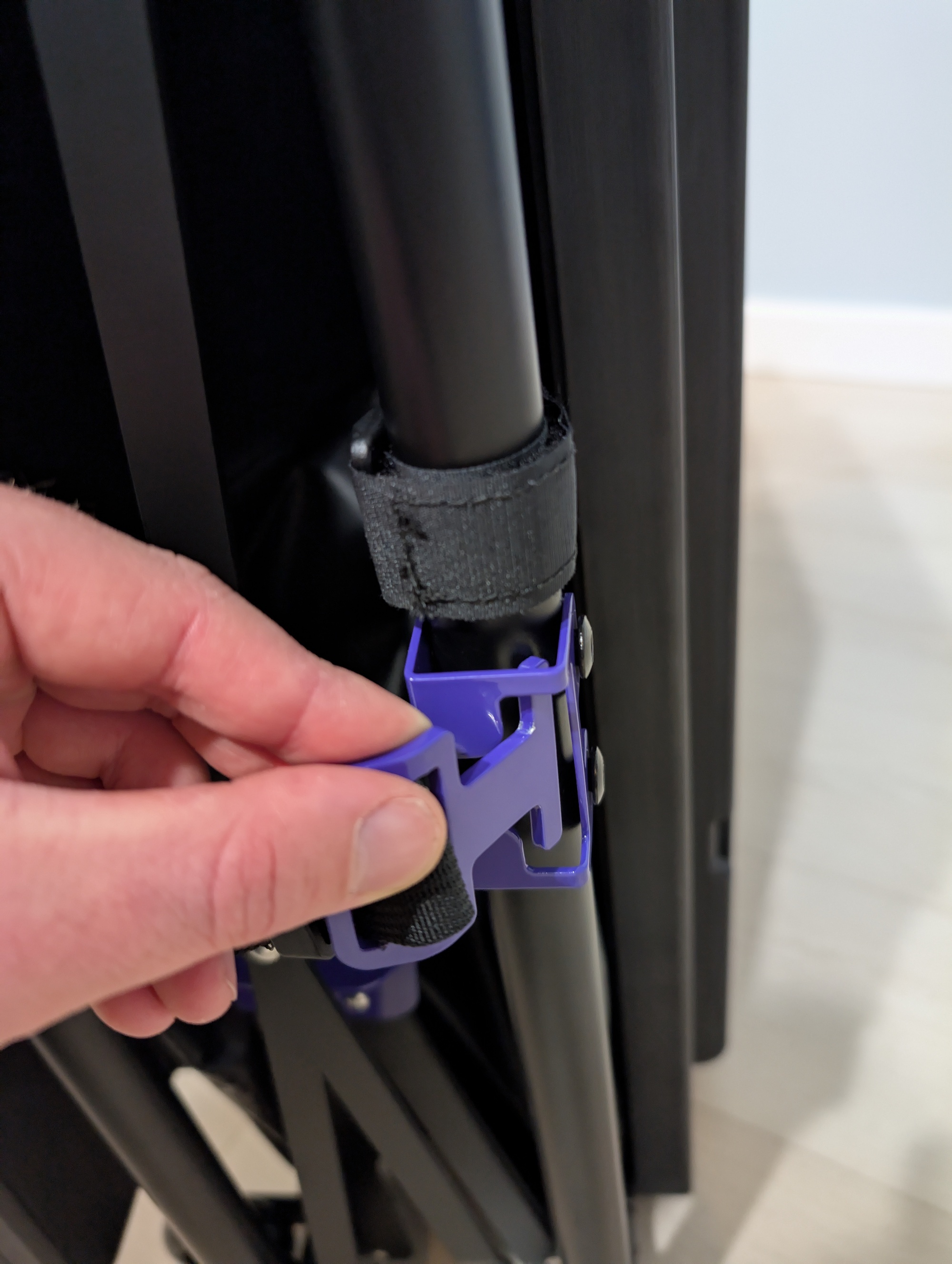

Tighten straps

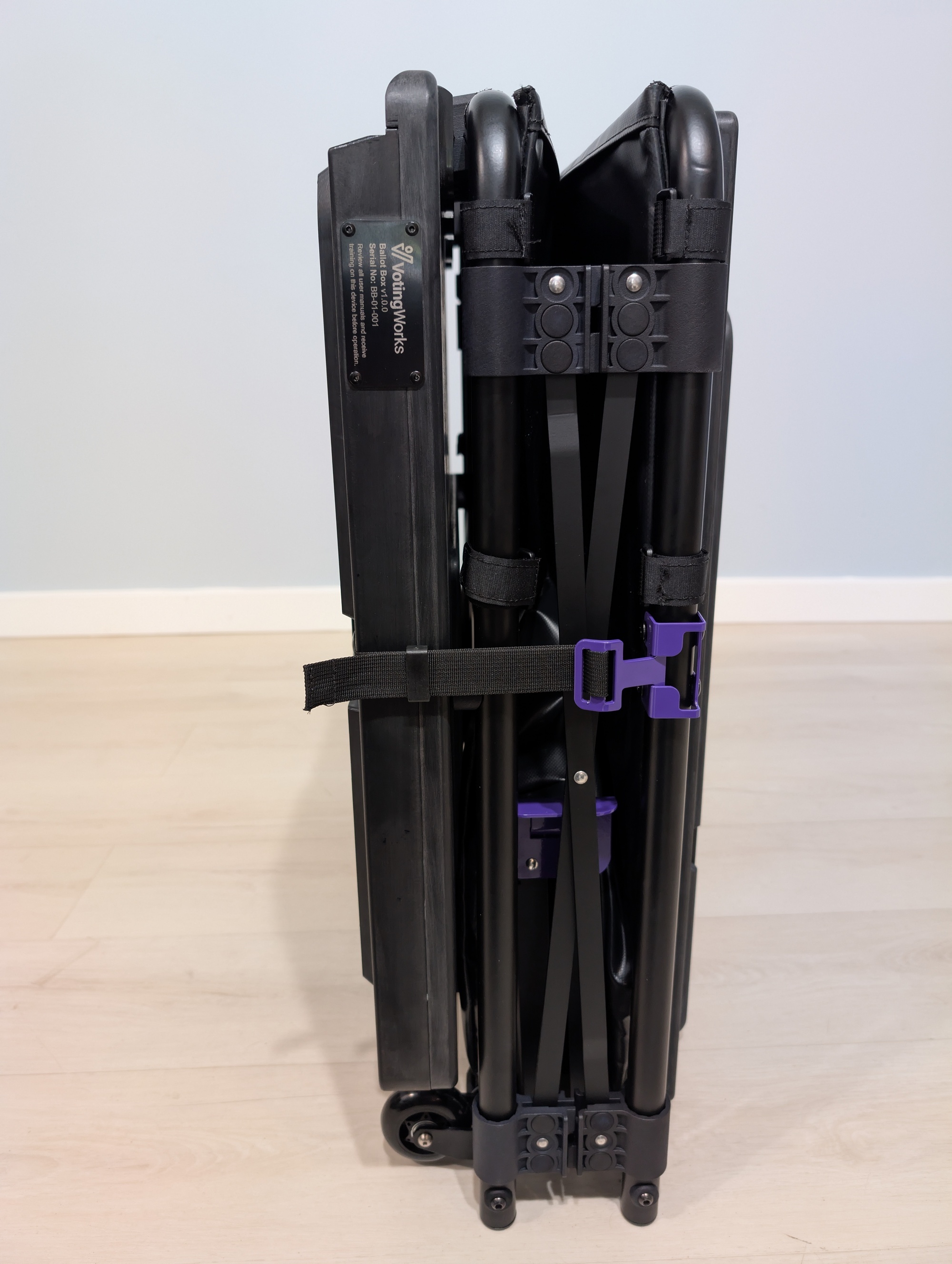

Ballot box secured
